Sony BDP BX350 Device Control Board Replacement

Geschrieben von: Cameron Peterson
  • Kommentare: 0
Sony BDP BX350 Device Control Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 - 10 Minuten

Einleitung

This is a step-by-step guide on how to replace your Sony BDP BX350 Device Control Board. This guide is needed if the device control board or USB drive are faulty. Make sure the device is unplugged before starting this guide.

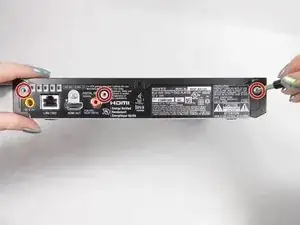

  1. FWcTAZdWIQPTLc5e

    • Remove the three 10mm Philips head screws on the back of the player.

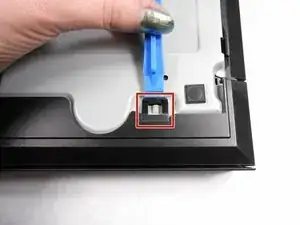

  2. ROHYiXs6vSSHIVUP

    • Using an opening tool lift up the tabs located on the bottom of the plastic front cover.

  3. hRtkDfGuOGRKC1Kt

    • Lift the tabs located on each side of the device to free the front cover. Begin separating the two covers from metal casing.

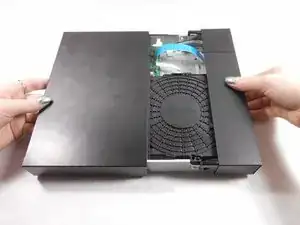

  4. v2lqVSQ2XCRfRsT1

    • Remove both covers.

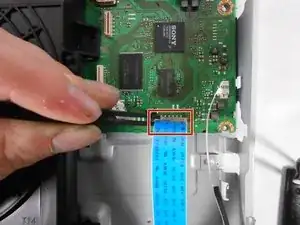

  5. KSvoRZb3fWORLZ12
    KSvoRZb3fWORLZ12

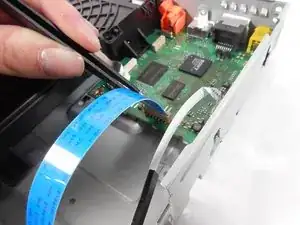

    YVL2neJISNRsIsYV

    • Do not bend or tear the ribbon cable.

    • Using the plastic tweezers, carefully remove the ribbon cable from the motherboard.

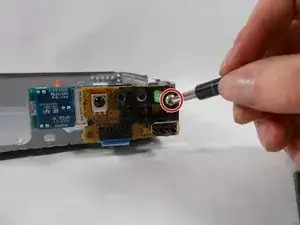

  6. UGpShoYxXWQJpTo3

    • Unscrew the one 5mm Phillips head screw from the front of the device board.

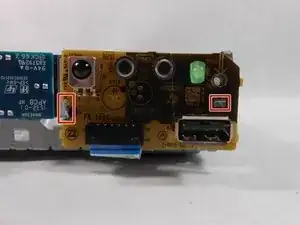

  7. CH4QrdpbQjGedUNQ
    CH4QrdpbQjGedUNQ

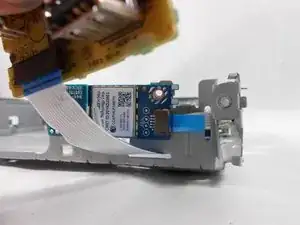

    Q2meuDOYRJQVXiFf

    • Do not bend or tear ribbon cable.

    • Carefully separate the device control board from the metal casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
