Sony BDP BX350 Wifi Card Replacement

Geschrieben von: Kristen Vezina
  • Kommentare: 0
Sony BDP BX350 Wifi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This is a step by step guide on how to remove the wifi card within your Sony BDP BX350. This guide is needed if your wifi card is faulty and your internet will not connect. Make sure the device is unplugged before starting the guide.

  1. FWcTAZdWIQPTLc5e

    • Remove the three 10mm Philips head screws on the back of the player.

  2. ROHYiXs6vSSHIVUP

    • Using an opening tool lift up the tabs located on the bottom of the plastic front cover.

  3. hRtkDfGuOGRKC1Kt

    • Lift the tabs located on each side of the device to free the front cover. Begin separating the two covers from metal casing.

  4. v2lqVSQ2XCRfRsT1

    • Remove both covers.

  5. KSvoRZb3fWORLZ12
    KSvoRZb3fWORLZ12
    YVL2neJISNRsIsYV

    • Do not bend or tear the ribbon cable.

    • Using the plastic tweezers, carefully remove the ribbon cable from the motherboard.

  6. UGpShoYxXWQJpTo3

    • Unscrew the one 5mm Phillips head screw from the front of the device board.

  7. CH4QrdpbQjGedUNQ
    CH4QrdpbQjGedUNQ
    Q2meuDOYRJQVXiFf

    • Do not bend or tear ribbon cable.

    • Carefully separate the device control board from the metal casing.

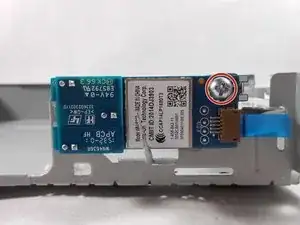

  8. pbkRcjAbQduACU2j
    pbkRcjAbQduACU2j

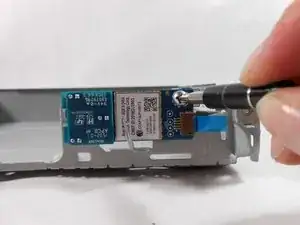

    2lhbKAITLNKajm1F

    • Remove 6mm Philips head screw from wifi board.

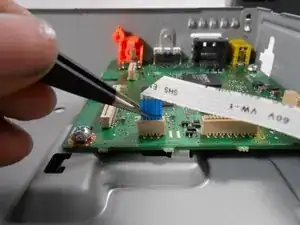

  9. saAIAfmUDoQqYdcu

    • Remove the ribbon cable from motherboard using a pair of tweezers.

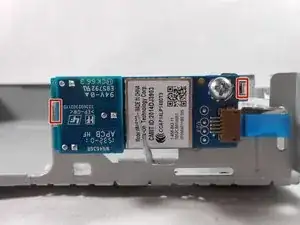

  10. vZu5JPgXE6nomBUI
    vZu5JPgXE6nomBUI

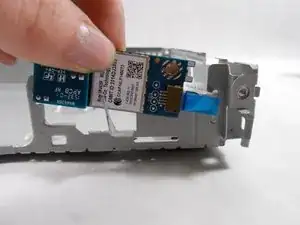

    2Lmibm5Qd42FSj4J

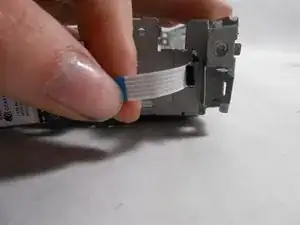

    SdZlWFEllcVetBhJ

    • Do not bend or tear ribbon cable.

    • Carefully remove board and ribbon cables by pulling upwards then out to free it from the metal clips.

Abschluss

To reassemble your device, follow these instructions in reverse order.
