Sony BDP-BX510 Wi-Fi Module Replacement

Geschrieben von: Niki Ngosi
  • Kommentare: 0
Sony BDP-BX510 Wi-Fi Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

15 - 20 Minuten

Einleitung

In the situation that your Sony BDP-BX510 Wi-Fi module is not working despite trying the solutions on the troubleshooting page, you may need to replace it. This guide will provide you with the steps required to safely remove your Wi-Fi module for replacement.

  1. ojxuMuvUTT1HOaxb

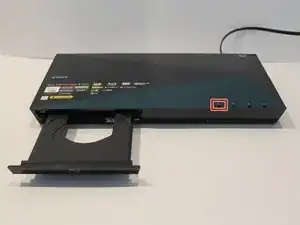

    • Plug in the device to turn it on, then press the eject ( ⏏ ) button to open the tray.

  2. jaufsh6DadytFl5h
    jaufsh6DadytFl5h
    ccIDPpwnYiG5jkR1

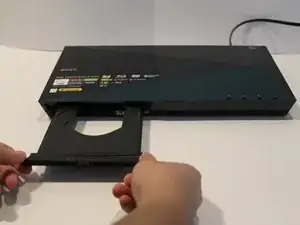

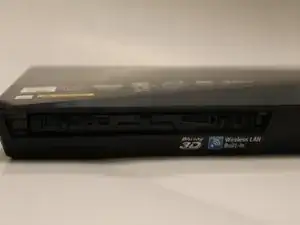

    • To remove the tray cover, hold both sides of the tray cover and gently apply a downward pressure.

    • Apply slightly more pressure to the left side until it unhooks then unhook the right side.

    • Close the disk tray by pressing the eject button again, then power off the device and unplug it.

    • Do not use too much force to remove the tray cover as you may break it.

  3. WXURpBpnfHMapPKN
    WXURpBpnfHMapPKN
    ABUs56y2HwxITbLJ

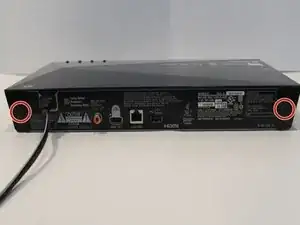

    • Turn to the back of the device.

    • Remove the two 7mm Phillips #2 screws.

    • Slide the two plastic covers on both sides of the device towards the back of the device to remove them.

  4. ZfdqJDZoUrJVv2nG
    ZfdqJDZoUrJVv2nG
    AEc1pKkOLSDIbQwX
    mNTyaiaHGlKwURjH

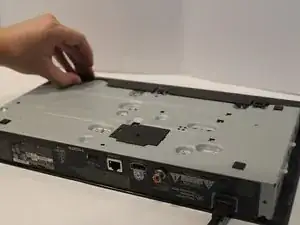

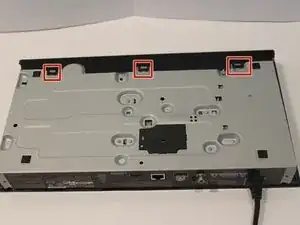

    • Turn the device so you can see the bottom.

    • Unclip the three black plastic clips on the bottom of the device.

    • Unclip one clip on each side of the device.

  5. Z2v2UcgGtNZFJpKW

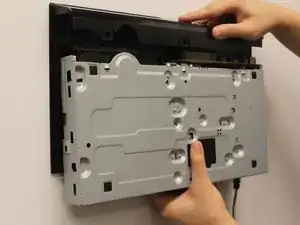

    • Slide the cover forward to remove.

  6. HFemIaNyogOUCPSm

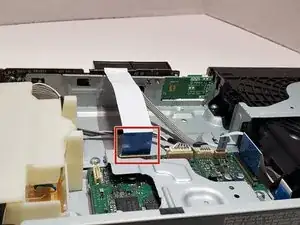

    • Find the large ribbon cable that connects the port board to the motherboard.

    • Carefully pull directly upwards to disconnect the cable.

  7. KsUvdRkc3SVvMVMP

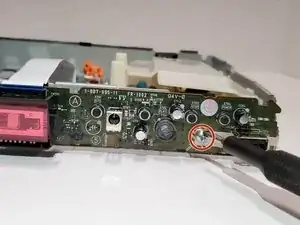

    • Using the Phillips #1 screwdriver, remove the 5mm screwdriver attached to the port board.

  8. jqRXvqO5JadjLFfM

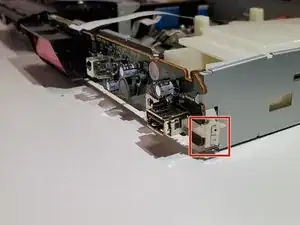

    • Unclip the metal piece on the lower right corner by gently lifting it up.

  9. OJnJJyds1dwWL1Tw

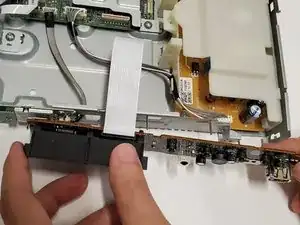

    • Remove the port board by simply pulling it away from the device.

  10. TXBcix6XXpeMhKJk

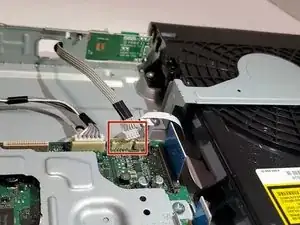

    • Pull the cable that attaches the Wi-Fi module to the motherboard.

    • The cable will be hard to remove, so pull hard but carefully.

  11. WbLWCQOD1OuP2QcX

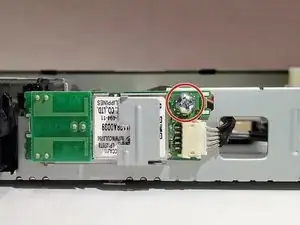

    • Use a Phillips #1 screwdriver to remove the single 5mm screw that holds Wi-Fi module to the device.

  12. 1DWVqslHrK1Rm464

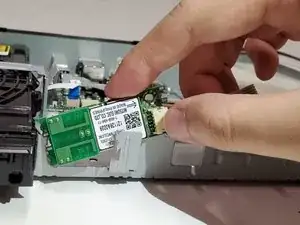

    • Carefully remove the Wi-Fi module from the device.

    • Avoid getting fingerprints on the module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
