Sony BDP-BX520 Disc Tray Replacement

Geschrieben von: Gregory Pellegrino
  • Kommentare: 2
Sony BDP-BX520 Disc Tray Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. TUB6yjNgUIpMUhRk

    • Plug in the Blu-Ray player, then press the power button, making sure the Blu-Ray player is powered on.

    • Press the eject button on either the top of the Blu-Ray player or on the remote to open the disc tray.

  2. bscceUUrfN4EcVqP

    • Grab the sides of the disc tray cover and carefully pull each side upwards, starting with the left side. This will unhook the cover from the tray.

  3. 1DyVcMATe2wvHTR3

    • Close the disc tray, then power off and unplug the Blu-Ray player.

  4. qnPR2NcOWfQTxGQS

    • Locate the three 8 mm screws on the back of the Blu-Ray player.

    • Using the Phillips #2 screwdriver, unscrew each of the screws and set them aside.

  5. GZhWnUyEaKAEn3xM
    GZhWnUyEaKAEn3xM
    commiSLaSuNEUAvD

    • Gently pull the top case back to remove it from the Blu-Ray player.

  6. LUVuVj6451FCHfyb

    • Insert the nylon or metal spudger under the clip on the side near the front of the device. Lift the clip so it is free from the device.

    • Lifting these clips may require you to hold one clip open while you move on to the next clip.

  7. loEbGfVBomSEKHQW

    • Flip device over so the bottom faces you.

    • Insert the nylon or metal spudger and lift the two clips on the bottom of the device.

  8. KsmZTCwpSO33SWRi

    • Lift the clip on the opposite side of the device with the nylon or metal spudger.

  9. yn5LJsfGSLuApkEN
    yn5LJsfGSLuApkEN
    UhLZfIr1VqOPCDV5

    • Grasp the front case firmly and lift from the rest of the device.

    • Lifting may require some force.

  10. TRivwS2v14QrN3xa
    TRivwS2v14QrN3xa
    OXXTY6uKuBFLyaoI

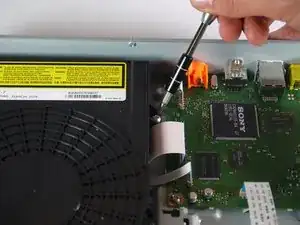

    • Using a Phillips #2 screwdriver, remove the two silver 8 mm screws on the right side of the disk tray .

  11. yj1UAAIGvvwVfvFQ
    yj1UAAIGvvwVfvFQ

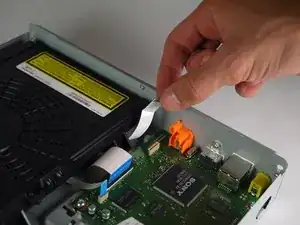

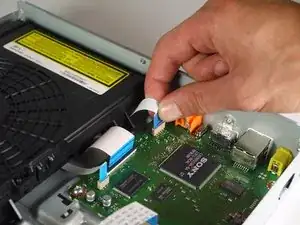

    nN5lCnciRYU6SRJ2

    • Pull the medium-sized 9 pin ribbon cable out of its connector on the motherboard.

  12. AV1eVgAekQdCToMl
    AV1eVgAekQdCToMl

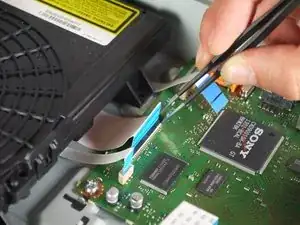

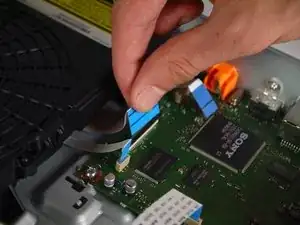

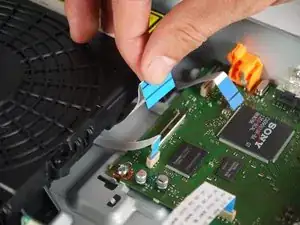

    qgYWVtXs3BM2mkIg
    NNYjRAJbYHY3URKJ

    • Using tweezers, lift up the tab of the large 45 pin connector on the motherboard.

    • Pull the large 45 pin ribbon cable out of its connector.

  13. ToRjvXC5iAPcslhJ
    ToRjvXC5iAPcslhJ

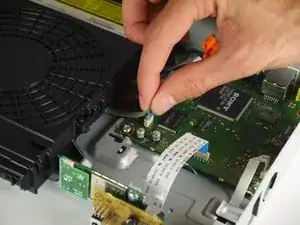

    rmQUUfHKRHCHkcsA

    • Pull the small 5 pin ribbon cable out of its connector on the motherboard.

  14. mcBoEALbr5hbVOsD
    mcBoEALbr5hbVOsD

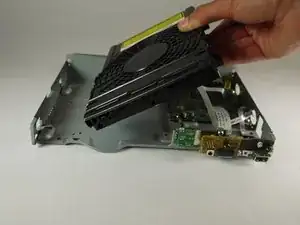

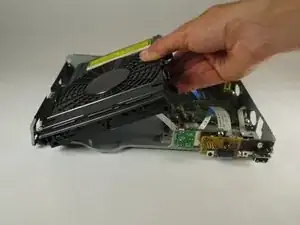

    hYGAhy6IxPghOWCI

    • Slide the disk tray out from under the tabs on the case holding it down while lifting it out of the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
