Sony BDP-BX620 Bluetooth Module Replacement

Geschrieben von: Zachery Zavala
  • Kommentare: 0
Sony BDP-BX620 Bluetooth Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 25 Minuten

Einleitung

This guide will show you how to remove the Bluetooth module which controls the Bluetooth functions of the device.

  1. DGIIZdiPsirN3LgZ
    DGIIZdiPsirN3LgZ
    KycfRCd3gnL6UPAd

    • Power on the device, eject the disk tray, and power off the device.

    • Turn the device over.

    • Lightly apply downward pressure on the black covering on the disk tray until it comes off.

    • Caution, applying too much pressure can break the black covering.

  2. u6XnIB1vpjPxFkji
    u6XnIB1vpjPxFkji
    lvSVqZjCYbot3d2T

    • Turn the device around.

    • Using a Phillips screw driver, remove the screws on both ends of the device circled red in the image.

    • Slide the side covers on either side towards the back of the device.

    • There is a back cover on either side of the device.

  3. BblxjTDi6F4ioQ3K
    BblxjTDi6F4ioQ3K
    2SnYh6J3UjHiVSsY
    ydMqiZ6awnulgHRm

    • This step might require someone to help unclasping the plastic clips.

    • Turn the device so that the bottom is facing up.

    • In the bottom, unclip the three plastic clips circled in red.

    • On either side, unclip the plastic clip circled in red

    • Slide the black covering forwards to remove.

    • All five clips have to be unclasped for the covering to be removed.

    • Careful not to break the plastic clips when putting it back on.

  4. YRH1CnXYkOEmmhRI
    YRH1CnXYkOEmmhRI
    iZXkjMvuE3wPqqfo

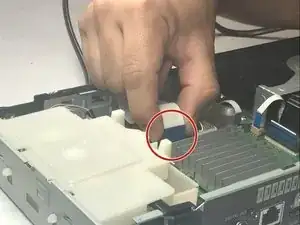

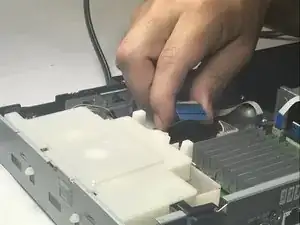

    • Now, spot the large ribbon cable that connects between the motherboard and the port board.

    • Remove the cable by pulling upwards.

    • Be careful when pulling upwards on the ribbon cable. Too much force can cause it to rip.

  5. 4xqw6hHwj3c62PZv

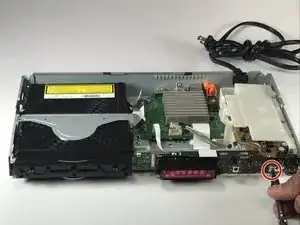

    • Use your Phillips screwdriver to take out the silver screw holding in the port board.

  6. HcjlqEe23EEKnnGL

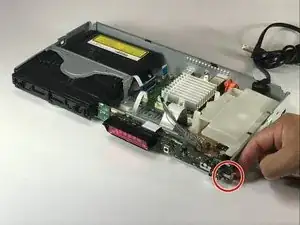

    • Now use the tweezers to unclip the portboard on the side.

  7. BZoANgLQFKKA6cNa
    BZoANgLQFKKA6cNa
    wlRbZQLfZ1a6CymD

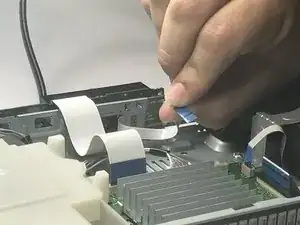

    • Now, pull the small ribbon cable that connects between the motherboard and the Bluetooth module.

    • Be careful to not pull too hard or the ribbon cable will rip.

  8. rQEgPTLZPsCnggMq

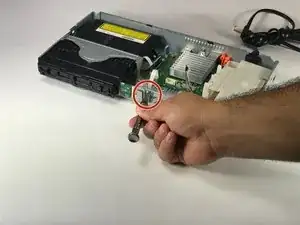

    • Use your Phillips screwdriver to remove the silver screw holding the Bluetooth module in place.

  9. dLaZtk2uRFGZcXsD

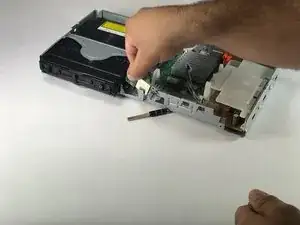

    • Lift to remove the bluetooth module from the device.

    • To prevent damage, always hold it on the sides.

Abschluss

To reassemble your device, follow these instructions in reverse order.
