Sony BDP-BX620 Power Module Replacement

Geschrieben von: Axel Cruz Jimenez
  • Kommentare: 0
Sony BDP-BX620 Power Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. DGIIZdiPsirN3LgZ
    DGIIZdiPsirN3LgZ
    KycfRCd3gnL6UPAd

    • Power on the device, eject the disk tray, and power off the device.

    • Turn the device over.

    • Lightly apply downward pressure on the black covering on the disk tray until it comes off.

    • Caution, applying too much pressure can break the black covering.

  2. u6XnIB1vpjPxFkji
    u6XnIB1vpjPxFkji
    lvSVqZjCYbot3d2T

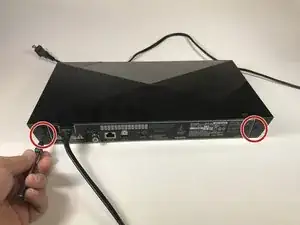

    • Turn the device around.

    • Using a Phillips screw driver, remove the screws on both ends of the device circled red in the image.

    • Slide the side covers on either side towards the back of the device.

    • There is a back cover on either side of the device.

  3. BblxjTDi6F4ioQ3K
    BblxjTDi6F4ioQ3K
    2SnYh6J3UjHiVSsY
    ydMqiZ6awnulgHRm

    • This step might require someone to help unclasping the plastic clips.

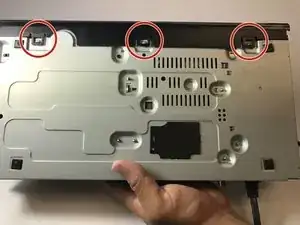

    • Turn the device so that the bottom is facing up.

    • In the bottom, unclip the three plastic clips circled in red.

    • On either side, unclip the plastic clip circled in red

    • Slide the black covering forwards to remove.

    • All five clips have to be unclasped for the covering to be removed.

    • Careful not to break the plastic clips when putting it back on.

  4. lAlVDHG5xRZNPWKO

    • Gently pull on up on the power cord to unlatch it from the metal body of the device.

  5. u3iklgGlb3rY1SPc

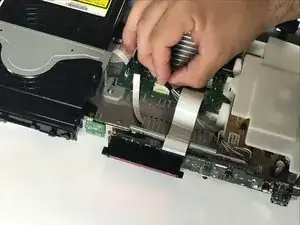

    • Remove the cable connecting the Power Port to the Motherboard by pulling up.

    • It may be difficult to remove. Pull from the plastic part and not the wiring to prevent the wiring from breaking.

  6. wNreXIRsPLoEW2DE

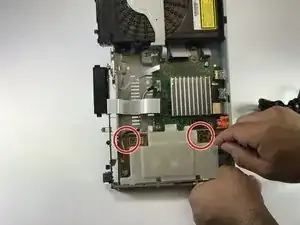

    • Remove both screws using the Phillips screw driver.

  7. 1qBMLIovRJGxqCrl

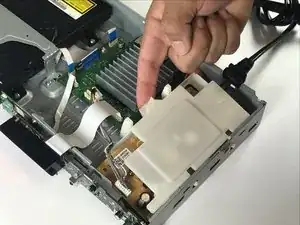

    • Lift the Power Module up from the side. See picture.

    • Pull up and away to remove the Power Module

Abschluss

To reassemble your device, follow these instructions in reverse order.
