Einleitung

Open up the optical drive and take it apart until you get to the motor. This guide is a bit more difficult than simply unscrewing, but definitely doable. Also, you get to see the inside of the optical drive, which is pretty cool.

  1. pGqDPvndqjBslwNE
    pGqDPvndqjBslwNE
    RLWo5PHATlB4gmQE
    • Remove the 12mm screws with the Philips #2 screwdriver which keep the plastic panels in place.

    • Don't forget, there are two more 12mm screws on the other side as well.

  2. nlPBXhBK3QIDuKvo
    nlPBXhBK3QIDuKvo
    PPNqFInrcjxIJYGH
    xrfRDtkxaZTIXfbG
    • First, remove the three 12mm black screws holding the top panel on (Phillips #2).

    • Then, remove the two 12mm black screws - one on each side of the back of the device - holding the top panel on.

    • Lastly, remove the three 12mm black screws on each side of device.

  3. AJXGhfLYM6CnO1Il
    AJXGhfLYM6CnO1Il
    cwEIvqUkRRWPXjsK
    jWHgS1anQEqiQ6QA
    • Carefully lift up the top panel, because there are two blue ribbon cables that must be disconnected before removing the panel, and we do NOT want them to break.

    • After gently disconnecting the two ribbon cables (you can just pull them out with your hand), take the top off and set it to the side.

  4. jxPrUggcrybUuYmt
    jxPrUggcrybUuYmt
    vjUpmdPDJKGJS4JQ
    xJbdlEOJbECR4Kx5
    • After the top is off, you'll see that there are two metal bars that go across the top of the device.

    • Remove each bar by unscrewing the two 10mm silver screws on each end.

  5. G6jQNhQLLfHKkdLJ
    G6jQNhQLLfHKkdLJ
    QRQEwBEK5YhAuJsm
    ECTJcrxQioZjrvJt

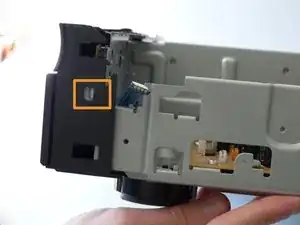

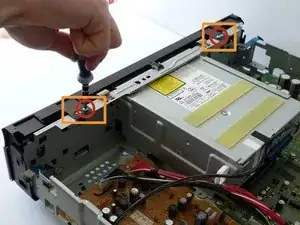

    • Remove the two 10mm silver screws holding the front panel on with the Phillips #2 screwdriver, located on the top side of the front panel.

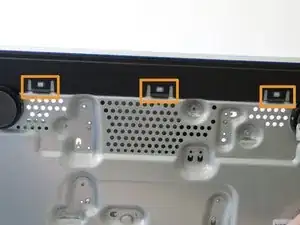

    • Take off the front panel by depressing the clips (either with your fingers, screwdriver, or other small object) and pulling it off.

    • There are two clips on the top, one on each side, and three on the bottom.

  6. dUk2QPKBTqTtBRHw
    dUk2QPKBTqTtBRHw
    WVhML1kaKrZugXR4
    • Before unscrewing the optical drive enclosure, the small cable on the left of the drive (when looking at the device from the back) needs to be disconnected from the circuit board (the orange one).

    • Also, take the cables out of the white clip that is on the side of the optical drive.

  7. mhkJB5AGRwVksJuG
    mhkJB5AGRwVksJuG
    qU5ZKoBU5aSNNLTZ
    EdoNthUi33bGmDdD

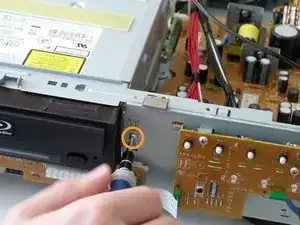

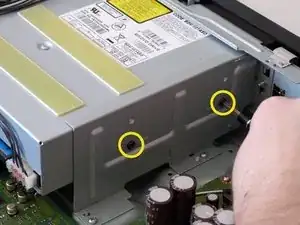

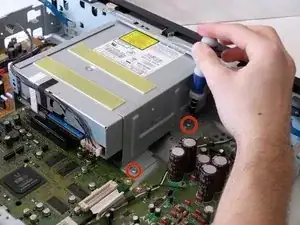

    • Unscrew the two metal clamps on both sides of the optical drive by removing three sets of screws:

    • The two 10mm silver screws on the bottom of the each clamp.

    • The 10mm silver screw holding each clamp from the front.

    • The two 5mm black screws on the sides.

    • Remove the two clamps. They can be removed by hand.

  8. aa1bm4NXquwnqZGh
    aa1bm4NXquwnqZGh
    DGOgWmBWVX1Rf3NY
    tSQvDunTvEocO6eC

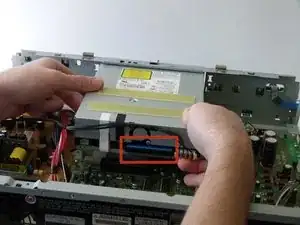

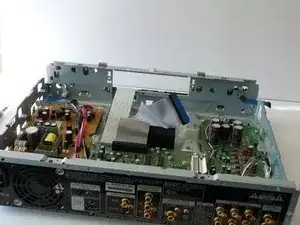

    • Gently pull the optical drive back to dislodge it from the front of the device and then lift it up.

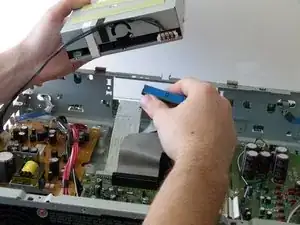

    • Remove the wide ribbon cable from the back of the optical drive.

  9. EfiCAiD4Q6V2NGZ1
    • Set aside the rest of the blu ray player; the only part you will need for this guide is the optical drive.

  10. XyjeRV1AiUvRNpYa
    XyjeRV1AiUvRNpYa
    1ScFZULSFgevNpd2
    w6cvdcNKlACFcqdQ

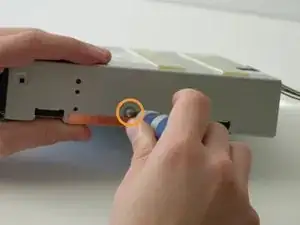

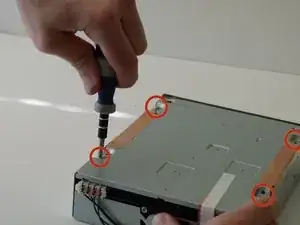

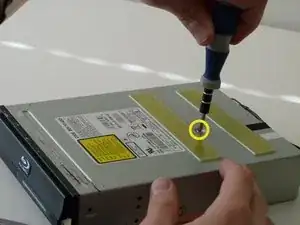

    • Remove the four 10mm silver screws on the bottom of the optical drive.

    • Remove the 10mm silver screw on each side of the optical drive.

    • Remove the single 6mm silver screw on the top of the optical drive.

  11. yEUspbFNTUQqLSC4
    yEUspbFNTUQqLSC4
    fkaONClDuRO4kjD2
    puWMgZwGYQQAPASL

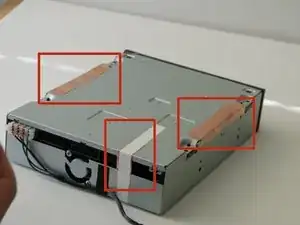

    • Any tape or foil strips need to be removed or cut before the drive can be opened (look at first image for example).

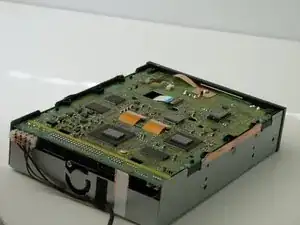

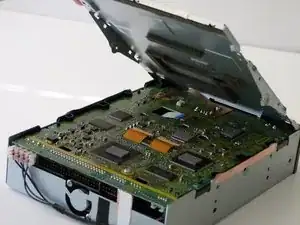

    • Pull off the bottom metal panel of the optical drive. You will see the main circuit board underneath.

  12. soApk5522wVxxZnv
    soApk5522wVxxZnv
    VD6wjSpvOoiLsVEP
    ICTQmvuFPtliwlUG

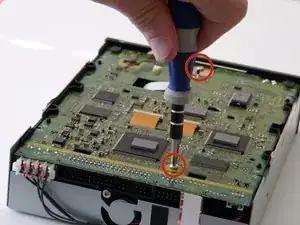

    • Remove the two, 20mm silver screws holding the circuit board in place.

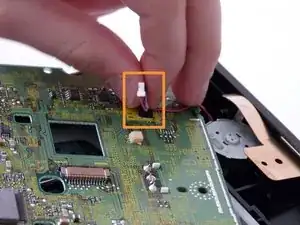

    • Before removing the circuit board, you will need to disconnect the blue ribbon cable, two orange ribbon cables, and a small connector (look at second image for where the small connector is).

    • The orange ribbon cables are held in place by a small locking mechanism. Lift the small brown tabs for easy disconnection.

  13. iJjFHWJaUlZyWAI1
    iJjFHWJaUlZyWAI1
    mu1GCIRVSpKhgvyt

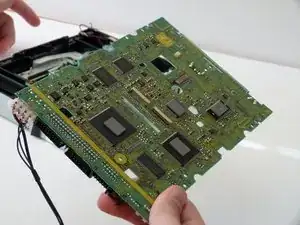

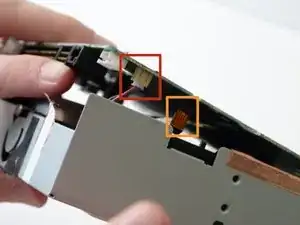

    • Slowly lift up the circuit board. Make sure to disconnect the connector and ribbon cable on the underside of the circuit board before fulling removing it.

  14. GTlQLx3b4SdFlPWH
    GTlQLx3b4SdFlPWH
    tICXdwgPZXmGcxoi

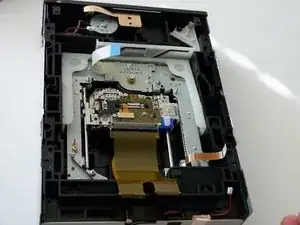

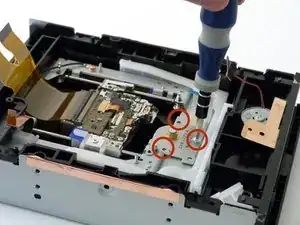

    • Now you can see the inside of the optical drive. The motor is held in by three small 5mm silver screws. Remove them.

  15. syPcmHNr6maPVPPG
    syPcmHNr6maPVPPG
    G33jVvCw51XFMu5Z

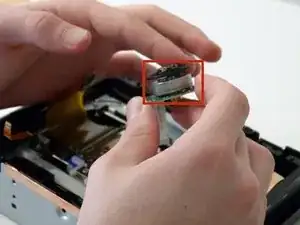

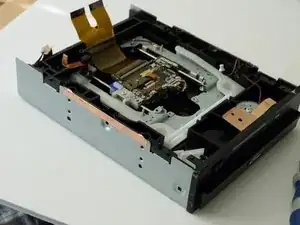

    • Lift up the motor and replace it with a new one. Now you just need to put it back together!

Abschluss

To reassemble your device, follow these instructions in reverse order.
