Sony BDP-S3200 Motherboard Replacement

Geschrieben von: Brandon Correa
  • Kommentare: 0
Sony BDP-S3200 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the motherboard in your device.

  1. OFLwwFxaYZGWRgJM

    • Remove all cables from the device.

  2. hVjmq4ZHEg3e1bws
    hVjmq4ZHEg3e1bws
    j2DPsCVYLD6EUa1k

    • Use a #1 Phillips screwdriver to remove the three screws located in the back of the device.

  3. ISeINcmqNGSltMDc

    • Pull the top cover off by sliding back from the device once the screws have been taken out.

  4. MIHYG1QWXgDfXlIC
    MIHYG1QWXgDfXlIC
    hNSMfNt4BqMWjnIB

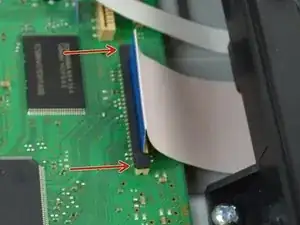

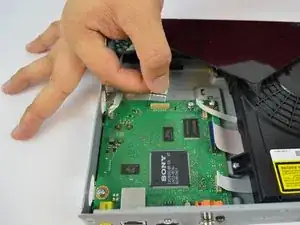

    • Carefully detach the white strips from the motherboard.

    • Be sure to lift the black latch for the largest strip next to the disc drive before removing it.

  5. FKkeZPoLhWEtFiI6
    FKkeZPoLhWEtFiI6
    hQNUfm2YDLBLJOwI
    eTdQ5PfaKUxEErHY

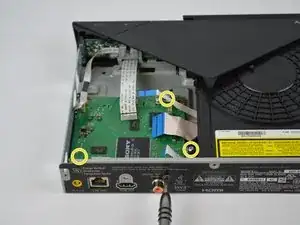

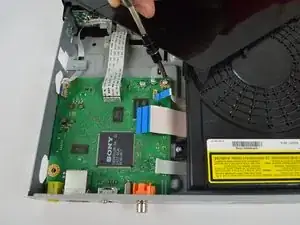

    • Remove screw above HDMI OUT port.

    • Remove screw above DIGITAL OUT port.

    • Remove the three screws on the motherboard.

    • Use a #1 Phillips screwdriver to remove all screws.

  6. ErDMXV6mdgSZ5MKe
    ErDMXV6mdgSZ5MKe
    j2k3AyxQEcsbH44X

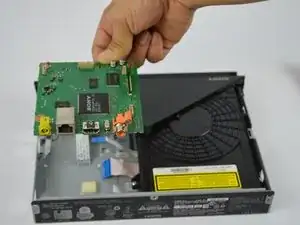

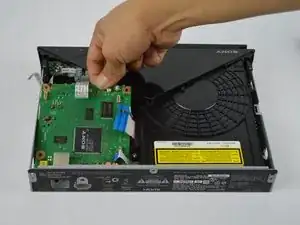

    • Remove motherboard from the device.

    • Be careful not to damage any components of the motherboard when removing it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
