Sony BDP-S3500 Wi-Fi Module Replacement

Geschrieben von: Bushra Banuso
  • Kommentare: 0
Sony BDP-S3500 Wi-Fi Module Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

The Wifi-Module allows the Sony BDP-S3500 Blu Ray player to connect wirelessly to the internet. This guide will show you how to replace it safely without damaging the other components.

Be sure to review the troubleshooting guide, as most of the time the problems are due malfunctioning software rather than it being a hardware issue.


  1. gYlphtLsKtUnINul
    gYlphtLsKtUnINul
    2sBRIyKYDPCZqrj6

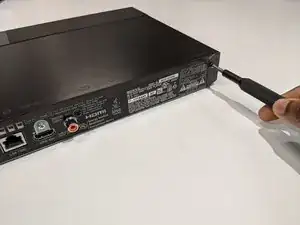

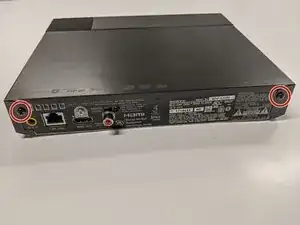

    • Use the Phillips #2 screwdriver to remove the two 9mm screws located on the back of the device.

  2. Ho4rFKkCmBKVuglb

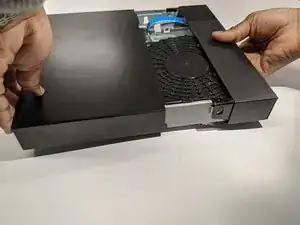

    • Slide the top panel off towards the back of the device.

    • Remove the top panel.

  3. 1gXMPgLVyq2LmBi6
    1gXMPgLVyq2LmBi6
    V1yGnTlWh5mGdRmY

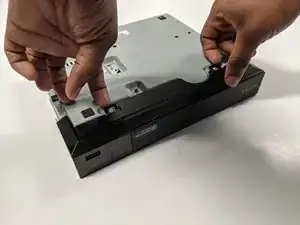

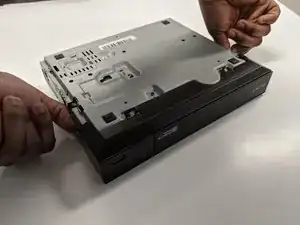

    • Unclip the plastic tags from the bottom of the device.

    • Unclip the plastic tags from the sides of the device.

    • Slide the front panel off.

  4. MPf2gnaIij1teTrC
    MPf2gnaIij1teTrC
    NXOUgoKOUPKOnkKl

    • Keep the back side up and facing towards you.

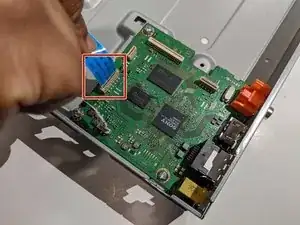

    • Carefully disconnect the blue ribbon connecting the port board and motherboard.

    • Be delicate while removing the ribbon.

  5. MDS2GYyDCAODOdDQ

    • Use a Phillips #2 screwdriver to remove the 9mm screw from the port board.

  6. UJjgDEYcDyOJQtM2

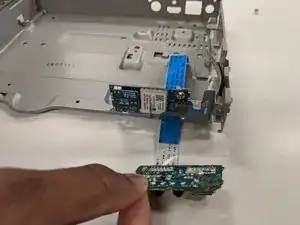

    • Remove the port board from the device.

  7. MZEPbji6UFOI5EXJ

    • Remove the white ribbon cable connecting the Wi-Fi module to the motherboard by gently pulling it out.

  8. XI3gkBgWGrREDHl6

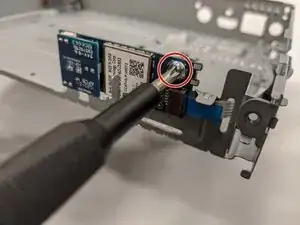

    • Use a Phillips #2 screwdriver to remove the 7mm screw from the Wi-Fi module.

  9. RcJZ4JmmgMWIiPCN

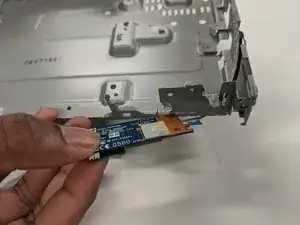

    • The Wi-Fi module can now be safely removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
