Sony BDP-S3700 Disc Drive Replacement

Geschrieben von: Luiz Barreto
  • Kommentare: 2
Sony BDP-S3700 Disc Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This guide shows how to replace the disc drive in the Sony BDP-S3700.

  1. xubC3hJVGmUPI6ui
    xubC3hJVGmUPI6ui
    WbVMEXFYPCQgYgHo

    • Use the PH1 screwdriver to remove the two 9mm screws on the back of the Blu-ray player.

  2. KmD2OWpCqTYGhvcA
    KmD2OWpCqTYGhvcA
    WHdRFrJdPZa6kvRZ

    • Remove the back of the device by slowly sliding the rear outer housing backwards.

  3. lvXgcZoD3B3QQQyZ
    lvXgcZoD3B3QQQyZ
    6ie6skbJhY5Rq4QV

    • Turn the Blu-ray over

    • Pry open the clips under and on the sides

  4. RqdjTbaD52TCfLHJ

    • Once all the clips are open, slide the front outer housing out.

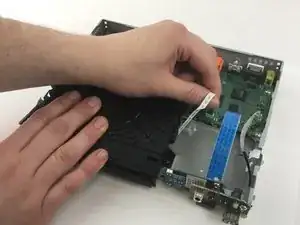

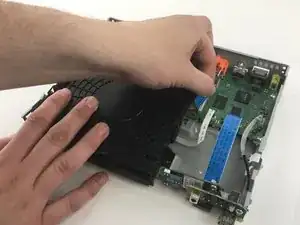

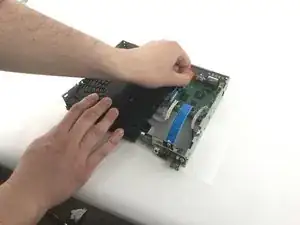

  5. nsFO2rKIlSGbCFER
    nsFO2rKIlSGbCFER
    LjGBdqhttXdLLydM
    jJFLQ6PUCFXCUJYl

    • Flip the Blu-ray back up

    • Remove the three ribbon cables that connect the disc drive to the motherboard.

    • Handle the circuits only on its side.

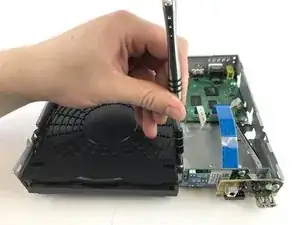

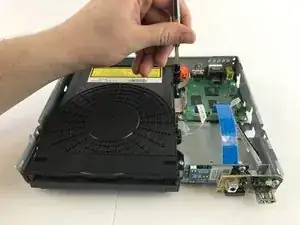

  6. CEOIZycvuJjPvLYa
    CEOIZycvuJjPvLYa
    KuUmfJ3EaxNAuQH2

    • Use a PH1 screwdriver to unscrew both of the 7mm screws on the side of the disc reader.

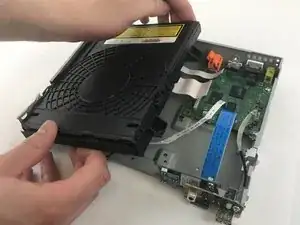

  7. PdVVag4RlhJCdiQp

    • Gently slide the disc drive to the right and lift up to remove the disc drive from the body of the player.

Abschluss

To reassemble your device, follow these instructions in reverse order.
