Sony BDP-S3700 Front Panel Replacement

Geschrieben von: Luiz Barreto
  • Kommentare: 0
Sony BDP-S3700 Front Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

This is a brief guide that demonstrates how to remove the front panel from your Sony BDP-S3700.

  1. xubC3hJVGmUPI6ui
    xubC3hJVGmUPI6ui
    WbVMEXFYPCQgYgHo

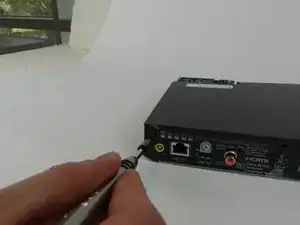

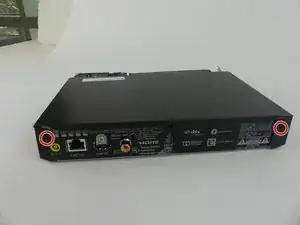

    • Use the PH1 screwdriver to remove the two 9mm screws on the back of the Blu-ray player.

  2. KmD2OWpCqTYGhvcA
    KmD2OWpCqTYGhvcA
    WHdRFrJdPZa6kvRZ

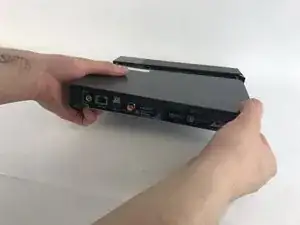

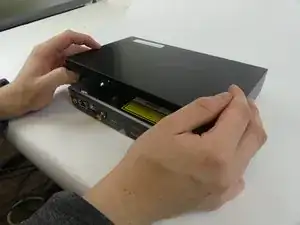

    • Remove the back of the device by slowly sliding the rear outer housing backwards.

  3. lvXgcZoD3B3QQQyZ
    lvXgcZoD3B3QQQyZ
    6ie6skbJhY5Rq4QV

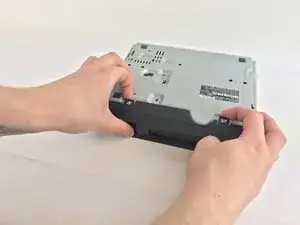

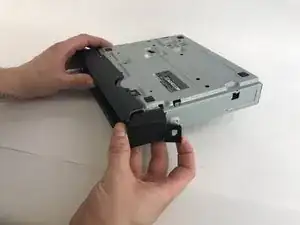

    • Turn the Blu-ray over

    • Pry open the clips under and on the sides

  4. RqdjTbaD52TCfLHJ

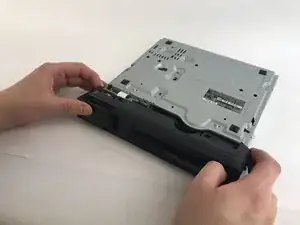

    • Once all the clips are open, slide the front outer housing out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
