Sony BDP-S3700 Wi-Fi Module Replacement

Geschrieben von: Luiz Barreto
  • Kommentare: 1
Sony BDP-S3700 Wi-Fi Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

The Wi-Fi module connects the Sony BDP-S3700 to Wi-Fi signals and to the internet. This guide shows how to replace it.

  1. xubC3hJVGmUPI6ui
    xubC3hJVGmUPI6ui
    WbVMEXFYPCQgYgHo

    • Use the PH1 screwdriver to remove the two 9mm screws on the back of the Blu-ray player.

  2. KmD2OWpCqTYGhvcA
    KmD2OWpCqTYGhvcA
    WHdRFrJdPZa6kvRZ

    • Remove the back of the device by slowly sliding the rear outer housing backwards.

  3. lvXgcZoD3B3QQQyZ
    lvXgcZoD3B3QQQyZ
    6ie6skbJhY5Rq4QV

    • Turn the Blu-ray over

    • Pry open the clips under and on the sides

  4. RqdjTbaD52TCfLHJ

    • Once all the clips are open, slide the front outer housing out.

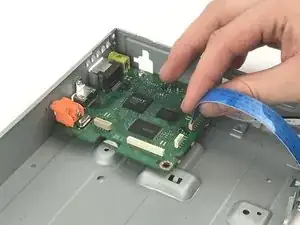

  5. mebawjst4NdBEoVQ

    • Flip the Blu-ray back up

    • Remove the ribbon connecting the port board to the motherboard.

    • Handle the circuits only on its side.

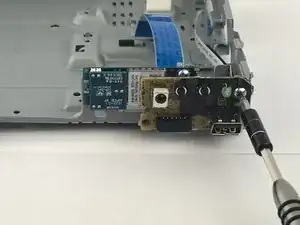

  6. O5ZLGHnCdVWRO5sv

    • Use the PH1 to remove the 7mm screw on the port board.

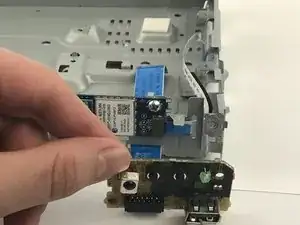

  7. ONexBqPEKMZuT2j5

    • Remove the port board.

    Do you know how I can get a port board replacement part?

    Jessica Crater -

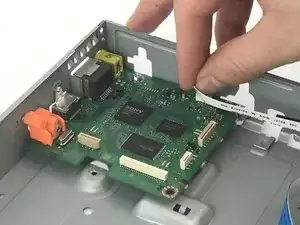

  8. PovM3vZyU5kbBKQZ

    • Remove the ribbon connecting the Wi-Fi module to the motherboard.

  9. xUSE1EdjEBFCZEh5

    • Use the PH1 screwdriver to remove the 7mm screw on the module.

  10. TlqjRbMLFNBhrjLy

    • Remove the Wi-Fi module

Abschluss

To reassemble your device, follow these instructions in reverse order.
