Einleitung

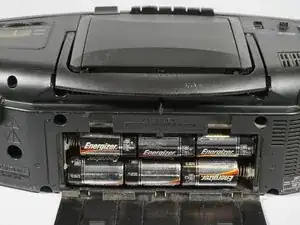

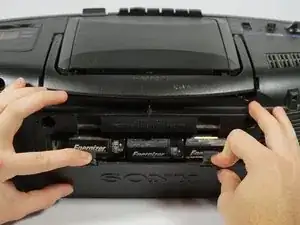

  1. ycD12Q2b6WKttxxf
    ycD12Q2b6WKttxxf
    JvIcOmuTEWNW5GfX
    2EjPtSRVZEgIJMGu

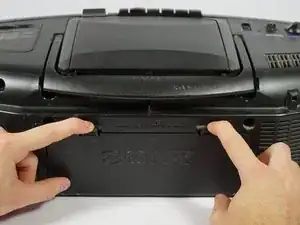

    • Remove the battery cover on the back of the boombox by applying downward pressure to the two clamps.

    • Be sure to unplug the boombox from the wall before attempting to open it for repair.

  2. RpCDHUSEQwTitWiD
    RpCDHUSEQwTitWiD
    StH6HPR1gdmgEcVv

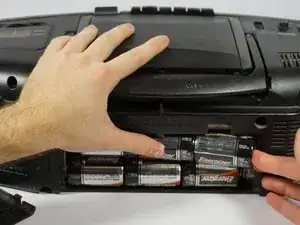

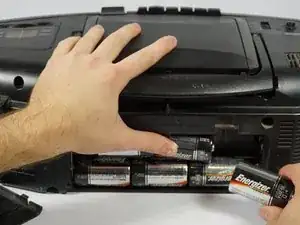

    • Push against the positive end of each battery. Once it is loose, lift the battery out. Repeat for all six batteries.

    • The top row of batteries have the positive side pointing right. The bottom row of batteries have the positive side pointing left.

  3. pq55yXRXfFbP1ZZM
    pq55yXRXfFbP1ZZM
    rRMnwZlfwVtT6Lyc
    rhxrWY4XxVIhKAOa

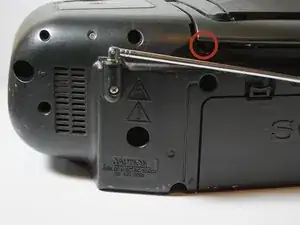

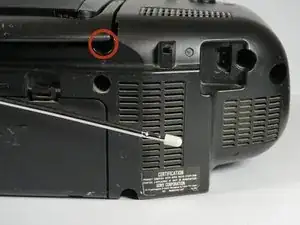

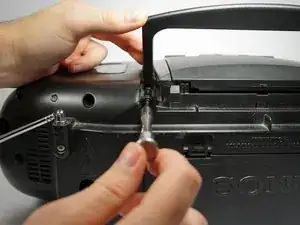

    • Hold the boombox handle at an angle to access the screws behind the CD player.

    • Use a Phillips #1 screwdriver to unscrew the top two 14 mm screws. You may need a flashlight to see the screws.

  4. vJsaXULhQBRqFTKT
    vJsaXULhQBRqFTKT
    gKpGwGrO2XbDnnO2

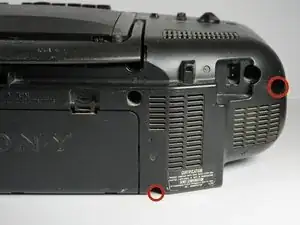

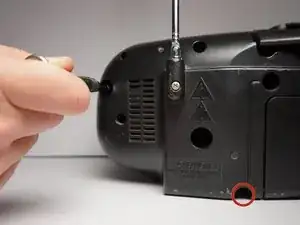

    • Remove four 14 mm screws using a Phillips #1 screwdriver. Two of these screws are at the bottom of the boombox and the other two are on either side of the boombox as highlighted in the related images.

    • All four screws have black arrows (not visible in the photo) indicating their location on the boombox.

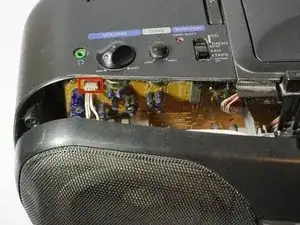

  5. JZX1hNS2TxcsGump
    JZX1hNS2TxcsGump
    oDxfxW15joeRnKLX
    bJekaPXAJ6UYMgGx

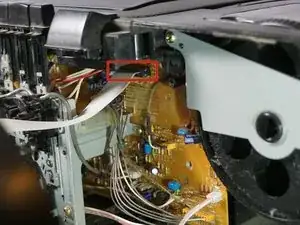

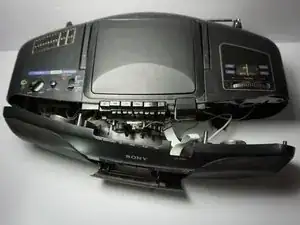

    • Gently separate the front panel from the back panel.

    • Remove the two connections holding the front panel to boombox.

    • One connection is located on the upper left hand side of the main circuit board.

    • The other is a large white strip slightly to the right of the cassette player.

    • Do not touch the cylindrical parts on the circuit board. These are capacitors and may deliver a shock!

    • Remove the front panel.

  6. QgMMa1ryiHHRFlDL

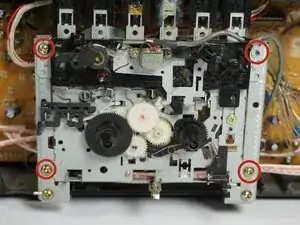

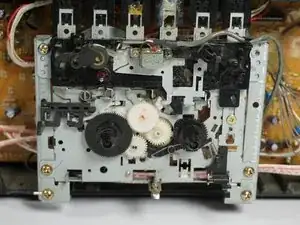

    • Unscrew the 3x12 screws circled in the photo using a #1 Phillips screwdriver.

  7. Z1geVUghVTmsVAIG

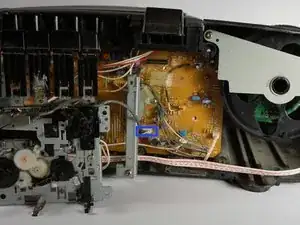

    • Carefully disconnect the wire connection by pulling at its base.

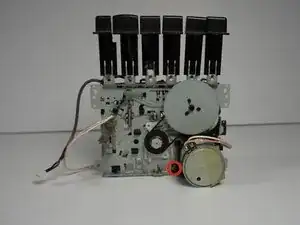

  8. HWtMLwI1jLdaqsg1
    HWtMLwI1jLdaqsg1
    NTbqMjjXWRdpfUBS
    xlNO2VZbbixYRMdG

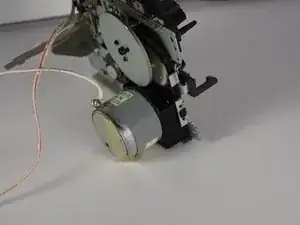

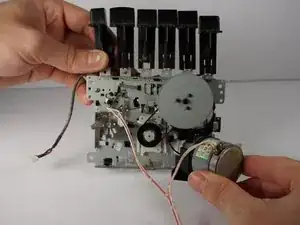

    • Unscrew the 5mm screw shown in the photo.

    • Note the small latch on the side of assembly as you remove the motor.

  9. X3jGHfN2kjFuZsbO
    X3jGHfN2kjFuZsbO
    TIPkMHNj3fUn1ROU

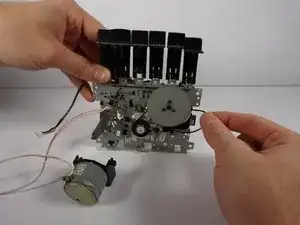

    • Remove the motor belt from its axle.

    Awesome thank you very much just changed the belt on one couldn't have done it without these instructions

    Noxious Rooster -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Wil Gilbreath

Mitglied seit: 14/10/14

205 Reputation

3 Kommentare

need belt for cassette replace

joe jefferson -

need the belt for the cassette player

joe jefferson -

First, be sure to have a #1 pt screwdriver with at least a 5” shaft(not counting the handle) length. Second, pay attention to where the screws under the handle are located. Third, mark the top of the connectors with a sharpie or such instrument to be sure you are replacing the connector in the correct position.

Don Gunkel -
