Einleitung
Use this guide to remove and replace the speakers in the Sony CFD-8 boombox.
Werkzeuge
-
-
Hold the boombox handle at an angle to access the screws behind the CD player.
-
Use a Phillips #1 screwdriver to unscrew the top two 14 mm screws. You may need a flashlight to see the screws.
-
-
-
Remove four 14 mm screws using a Phillips #1 screwdriver. Two of these screws are at the bottom of the boombox and the other two are on either side of the boombox as highlighted in the related images.
-
All four screws have black arrows (not visible in the photo) indicating their location on the boombox.
-
-
-
Gently separate the front panel from the back panel.
-
Remove the two connections holding the front panel to boombox.
-
One connection is located on the upper left hand side of the main circuit board.
-
The other is a large white strip slightly to the right of the cassette player.
-

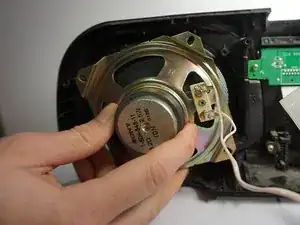

Remove the front panel.
-
-
-

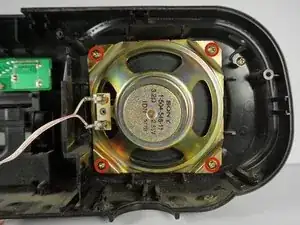

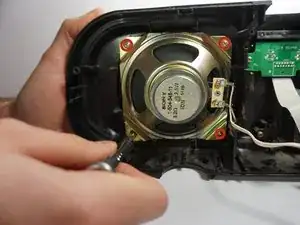

Use a 14cm Phillips #1 screwdriver to remove the four respective screws attaching the left and right speakers to the front panel.
-
To reassemble your device, follow these instructions in reverse order.
