Sony CFS-204 Radio Cassette-Corder Speaker Replacement

Geschrieben von: Brittany Patterson
  • Kommentare: 0
Sony CFS-204 Radio Cassette-Corder Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will demonstrate how to open the radio and remove the speakers.

  1. fplhjHn1BXL1IlXn

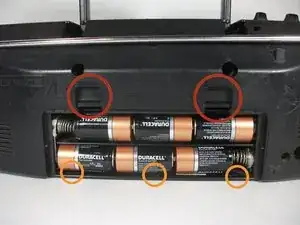

    • Press down on the two tabs at the top of the door.

    • Rotate the door away from the radio, towards you.

    • Lift the door out of the three smaller tabs on the bottom.

    • Ensure the radio is turned off to avoid the possibility of electric shock.

    • The battery compartment door is not shown.

  2. BMCdQhd6H36NCPF5
    BMCdQhd6H36NCPF5
    CFTIRtdHSSLCZnSx
    vY6bryepVThOOObX

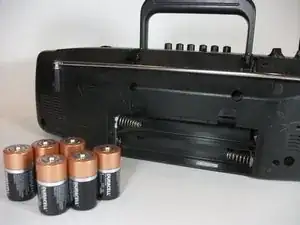

    • Push the batteries against the spring and pull out using your finger to remove them.

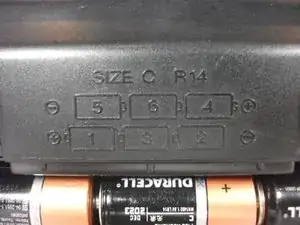

    • To insert the new batteries, push the negative end of the 1st battery against a spring and follow the diagram pictured to insert the batteries in the correct orientation.

  3. Vp4olMrlYRUCwTER
    Vp4olMrlYRUCwTER
    NXayP2mBQTvBTcZe
    FCMpVohUiAoLigfc

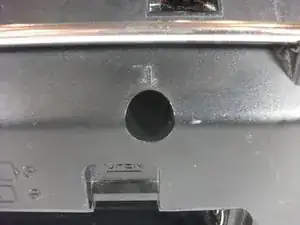

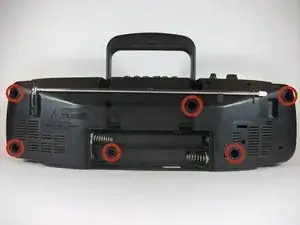

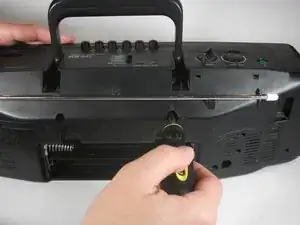

    • Remove the 6 screws (30 mm in length) with the Phillips #2 Screwdriver from the large holes marked by arrows on the radio.

  4. pG1lwjhVXGmIOhgY

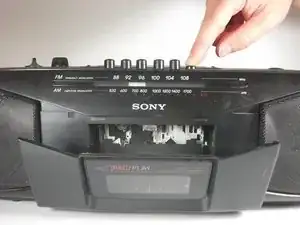

    • Press the EJECT button to open the cassette deck.

    • Pressing this button is required to allow the front face to separate from the case.

  5. RPkKEqfUSZKxHJGi
    RPkKEqfUSZKxHJGi
    Ld4l55IGDBQ1uvR2

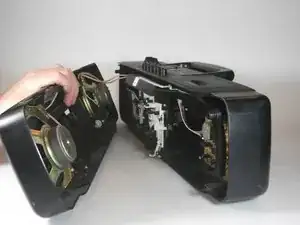

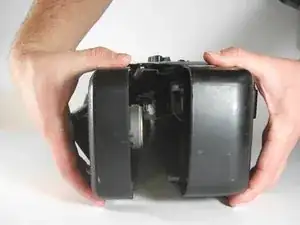

    • Grasp the radio from the front and back halves and gently pull apart to separate them.

  6. RtOIZoo5HuWfeoVR
    RtOIZoo5HuWfeoVR
    xIraHUAhNGGWLESY

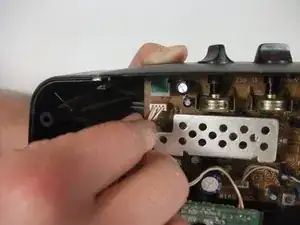

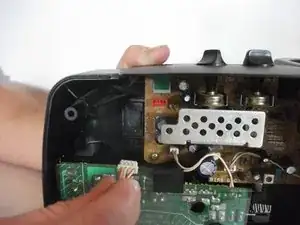

    • Pull the white plug out from the red outlet in the Orange circuit board in the back face of the casing.

    • Take care not to break the red outlet off the circuit board.

    • The front and back portions of the casing are now separated from each other.

  7. KqtvinUHxrV6UHOh

    • Carefully slice the glue holding the speaker wire at the top right corner of the front face with a sharp tool or a knife to separate the wire from the case.

    • The wire can be tucked into its original location without re-gluing it.

  8. Xht4t1DLfjWAwbSd

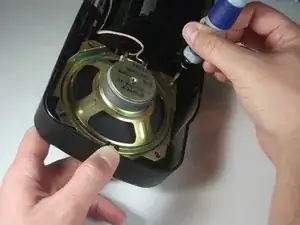

    • Remove the 2 screws (10 mm in length) located on the corners of the speaker with the Phillips #2 screwdriver.

    • There are 4 screw positions; however, our radio only had screws in two of the positions on each speaker.

    • Repeat the process for the second speaker if you need to replace both speakers.

  9. uuC5HIVngpFKd2qn

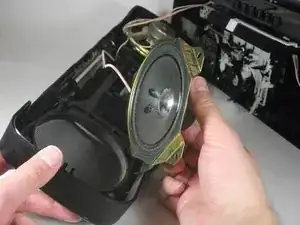

    • Lift the speakers out of the front face of the radio to complete the removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
