Sony Clie PEG-T615C Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

This article will teach the user how to remove an old battery from a Sony Clie PEG-T615C with short and easy-to-follow steps.

  1. oGBDmvxbIYpLjTVX

    • Remove two screws from the thumb dial panel on the back of the device.

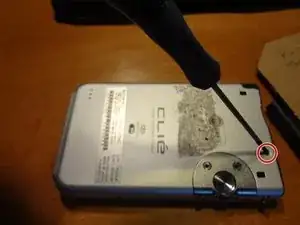

  2. KArQRFWmpp2Uybbu

    • Remove one screw from the upper right corner on the back of the device.

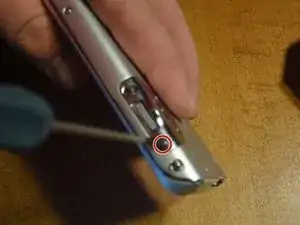

  3. fEYfdjRmqiDficED

    • Remove one screw from the thumb dial panel on the right side of the device.

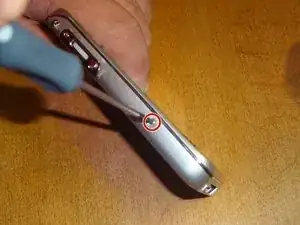

  4. 1YBh3pU1OvRgfQCB

    • Remove one screw from lower right side of the device.

  5. LS6ATwiZNFsEL1M6

    • Remove one screw from the lower left side of the device.

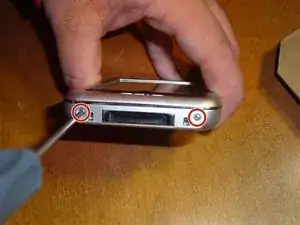

  6. VtvOeQoP1WxSvcTS

    • Remove two screws from the bottom of the device.

  7. gBhXDUpCLyYAhaDh

    • Remove the thumb dial panel by sliding it away from the device.

    • You can do this step earlier, after you remove all of the screws from the thumb drive panel.

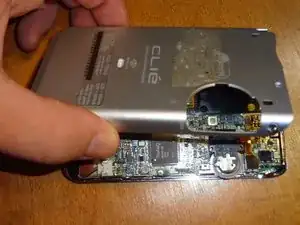

  8. QoRH2JZykyKOmWWc

    • Remove the back panel, exposing the inside of the device.

  9. nJChI2FYLTT6KYuI

    • Remove one screw located on the board below the battery.

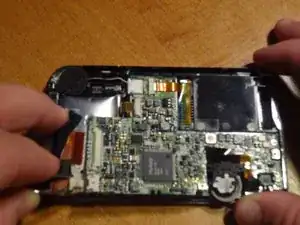

  10. ItlVwVNsTOufyfCO

    • Unplug the male battery plug on the battery wire from the female battery plug on the board.

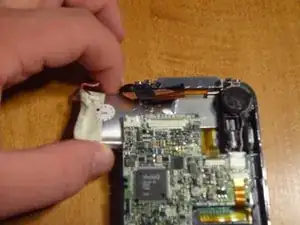

  11. VyQFGrJbUXxIJvMR

    • Remove the battery by sliding it out of the side of the device.

    My battery was glued on the non-visible side. The entire board needed to be lifted, and the battery had to be “gently pried” off. Ever so gently…

    ColbyAndrew -

Abschluss

To reassemble your device, follow these instructions in reverse order.
