Before taking apart your device, make sure that you have the proper tools to do so. We used a small screwdriver to remove the screws because they are so tiny. Also, make sure that you are working in an area that is clean and clear of debris so you can see all the parts of your device as you take it apart.

  1. ve5cXpnRUYNNycxZ
    ve5cXpnRUYNNycxZ
    yEAtYoCqtYxGuSBK

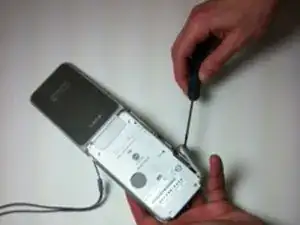

    • Use a #00 Phillips screwdriver to remove screws on the back plate and the side of the device.

  2. 3VF1oOiPYCYwYOUN
    3VF1oOiPYCYwYOUN
    AIg6evxmWHeIgu32

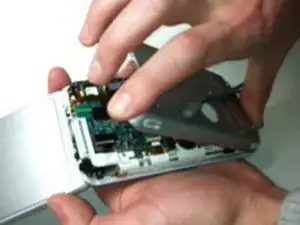

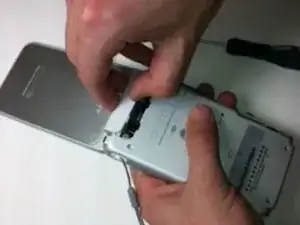

    • Remove the small top grey piece from the back plate.

    • Detach the back plate from the rest of the device.

  3. AvD6aiRakSOVWfFt

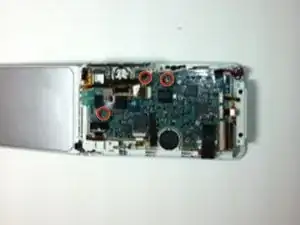

    • Use the #00 Phillips screwdriver to loosen and remove the screws on the motherboard.

  4. mVJMZbMItOCuWxcT

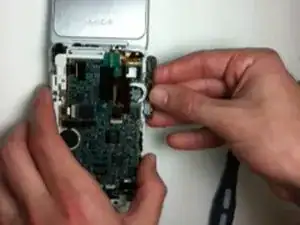

    • Remove the volume rocker from the side panel of the device.

  5. jXch24HMNsPIW4x3

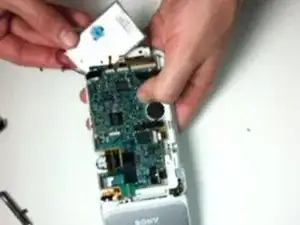

    • Loosen the battery from the motherboard.

    • Replace the battery with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
