Sony Clie PEG-UX50 Tilt Screen Replacement

Geschrieben von: Rishad R Rai
  • Kommentare: 0
Sony Clie PEG-UX50 Tilt Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

The Sony Clie PEG-UX50 has a separate tilt screen display. This guide will show you how to remove the tilt screen without dismantling the battery plate.

  1. EWmJntV2ugDGORGg
    EWmJntV2ugDGORGg
    tDOaAYvNQqpPYums
    4F1mSD12THAYFsir

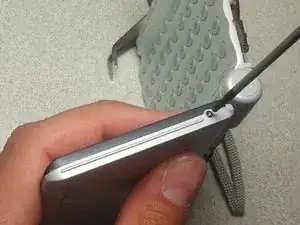

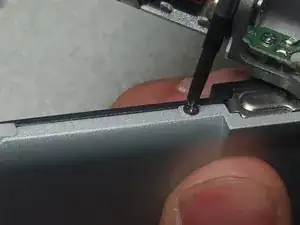

    • Take off the screws located on the two sides of the tilt screen.

    • Unscrew the screw located at the tilt base of the screen.

  2. 6pGSihnOpubIWfFC
    6pGSihnOpubIWfFC
    3dyBhypvqCPOYojI
    euuhUCANSrj2UOVu

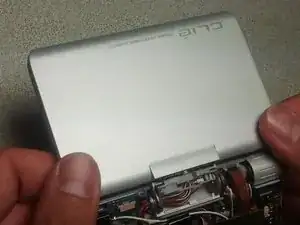

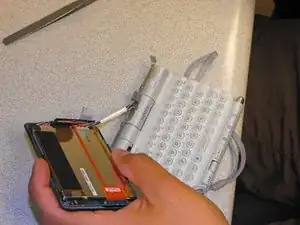

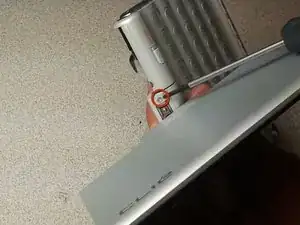

    • Gently remove the back plate of the tilt screen by sliding it upward.

    • With caution, lift the wires from the track in the back plate.

  3. mEMFjPhMYh15iLO5
    mEMFjPhMYh15iLO5
    1oehVTWYChFKDJSv

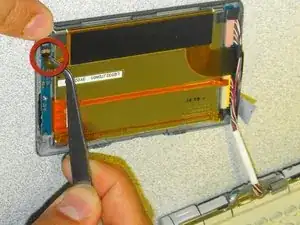

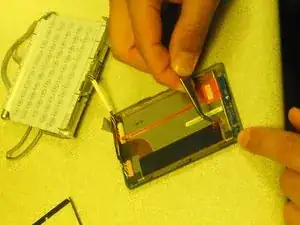

    • Disconnect the thin USB cable attached to the Integrated Circuit.

  4. 1KrRVekjTZex3eGj
    1KrRVekjTZex3eGj
    AblEhJeTGNilHDqt

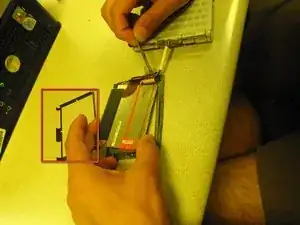

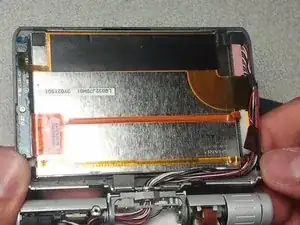

    • Detach the plastic black frame from in between the plate and the LCD.

    • Do not disconnect the display from the board yet.

  5. YmAprOXqCsXVRcwq

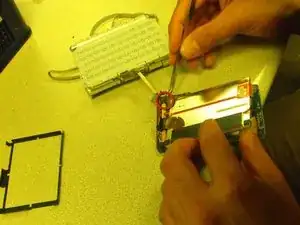

    • Disconnect the thin connector from the face plate using tweezers.

  6. bBQckVeL31JPiSMA

    • Quickly release and disconnect the thick cable with your hands.

Abschluss

Follow these instructions in reverse order to reassemble your device.
