Sony Cyber-Shot DSC-H1 Back Panel Replacement

Geschrieben von: Trystan Jasperson
  • Kommentare: 0
Sony Cyber-Shot DSC-H1 Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 - 5 Minuten

Einleitung

Keeping the back panel in good condition is key to extending the lifetime of the camera.

  1. h4PyQSyCSVoiwSoI

    • Power down the camera and remove the batteries.

  2. yAQXltuknoE2hEkE
    yAQXltuknoE2hEkE
    tZXNXKEryNAM2YWE
    st2SNqS2nAVewKDK

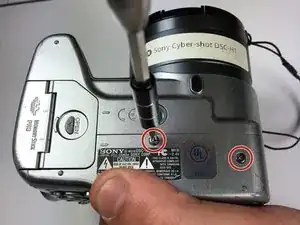

    • Using a Phillips #0 screwdriver, remove all of the screws from the back panel casing.

    • There are six 5.22mm long, 3.00mm head diameter screws total.

    • The left side is not shown but there should be 1 screw on that side.

  3. aS4YKRjZNWBwPl3i
    aS4YKRjZNWBwPl3i
    YBBnvAtxAwwocpxY

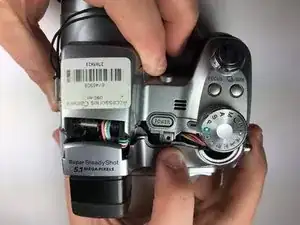

    • Remove the back casing.

    • The casing itself is sturdy so don't be afraid to remove it forcefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
