Einleitung

Before use underwater it's important to ensure that the device is properly sealed. Otherwise, the device will likely be seriously damaged. If the battery/memory card cover seal is damaged, broken, or not properly sealing the device to prevent it from taking in water or other hazards, then it needs to be replaced before the camera is used underwater.

  1. uSvIlTKeYTntQ4t4
    uSvIlTKeYTntQ4t4
    NXckJjbMcfjGp2sB
    • Using your finger, slide the release catch to unlock the battery/memory card cover.

  2. pYl5YswLWZjyHsaa
    pYl5YswLWZjyHsaa
    mTDWFDqIfZCsvRNL
    • Open the battery/memory card door.

  3. jQ3CcTToMHNWnVeH
    jQ3CcTToMHNWnVeH
    CgvWu5UIBxp32vxx
    • Push the battery eject lever to free the battery.

  4. tlJIZsv4t2UYQboW
    • Remove the battery from the device.

  5. hahhPCAF4AnLQtn4
    • Using a Phillips #00 screwdriver, remove the two 2mm screws on the battery/memory card cover seal.

  6. Cbrb2TYAVTRX25Gv

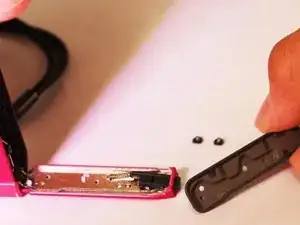

    • Using your fingers, remove the battery/memory card door seal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
