Sony Cyber-Shot DSC-TX30 Wrist Strap Holster Replacement

Using your finger, slide the release catch to unlock the battery/memory card cover.

Open the battery/memory card door.

Push the battery eject lever to free the battery.

Remove the battery from the device.

Using a Phillips #00 screwdriver, remove one black 2 2/5mm screw that is located next to the wrist band loop.

Using the plastic opening tool, separate the edge-casing from the rest of the camera.

Pull the edge-casing off of the camera.

Using a Phillips #00 screwdriver, remove one silver 3mm screw located on the front side of the camera.

Using a Phillips #00 screwdriver, remove one silver 5 2/5mm screw located on the front side of the camera

Using a Phillips #00 screwdriver, remove one black 2 1/2mm screw located on the front side of the camera.

Using a Phillips #00 screwdriver, remove one 2 1/2mm screw located near the wrist strap.

Using a Phillips #00 screwdriver remove one black 2 2/5mm screw near the tripod slot on the bottom of the casing.

Using a Phillips #00 screwdriver remove the two 2 2/5mm black screws from the side of the camera opposite of the wrist strap

Using the plastic opening tool, open the device's outer shell.

Remove the front casing of the device.

Using the plastic opening tool, remove the back casing of the device.

Using a Phillips #00 screwdriver , remove two silver 3mm screws from the side of the device.

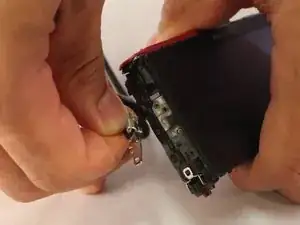

Using your fingers, remove the silver wrist band holster from the device.
