Sony Cyber-Shot DSC-TX9 Card Reader Replacement

Geschrieben von: Yegor Shea
  • Kommentare: 0
Sony Cyber-Shot DSC-TX9 Card Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide will demonstrate how to replace the Memory Card Reader. This will fix the "Unable to read memory card" Error.

  1. iYmKV56NCqGmeXBZ
    iYmKV56NCqGmeXBZ
    K1dqPsOQVLeqbSST
    ZC5WYXZgQGLOJS5o

    • Use a Phillips #0 screwdriver to unscrew the six 2mm screws on the outer case of the camera.

    • If there is a battery or SD card inside remove before beginning the process.

  2. Q2Q4PhRBXoBPSCCn
    Q2Q4PhRBXoBPSCCn
    vwUPWYGscFcGBGTh

    • Use your hands or a Spudger to Pull off the front cover of the camera.

    • If the casing is not coming apart easily, do not force it.

  3. W65PVrCX1NiZPd1L

    • Remove the protective black cover layer with your hands and set it aside.

    • The use of tweezers may be necessary if the cover is difficult to remove.

  4. FPOCEuSnXEkaCE2b
    FPOCEuSnXEkaCE2b
    wNVbT3hWtW53Khxb

    • The ZIF connector can be removed by flipping the small black holder into the upright position and then sliding the ribbon cable out carefully.

    • Once this has been done, use tweezers to unplug the flat topped connector for the lens’ circuit board from the motherboard.

    • DO NOT force the ribbon cables or they will rip.

    • Refer to the (Erkennen und Trennen von Kabelverbindern) page for assistance.

  5. MurDK2rVBmoGJ4Cg
    MurDK2rVBmoGJ4Cg
    vwexHBM5mMyavJpx
    HNMFBed4lZwyRfSN

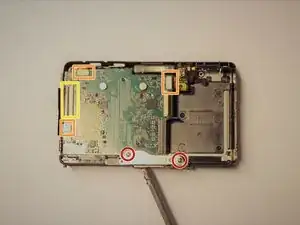

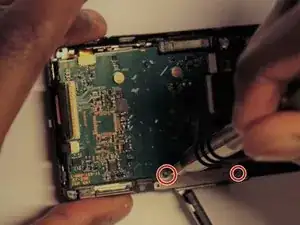

    • Using a Phillips head screw driver, remove the two screws for the metal plate on the bottom.

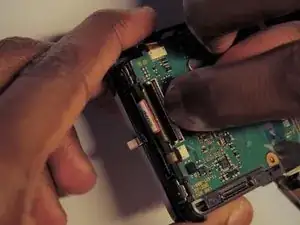

    • Detach the smaller ribbon cables by sliding them out.

    • Detach the large ribbon cable by flipping the small black holder in an upright position and then sliding the cable out carefully.

    • Detach the ribbon cables slowly and carefully or they will rip.

  6. uLyYjSgtJhfHu6Jq
    uLyYjSgtJhfHu6Jq
    eU5xMFI5hXjXxBFF

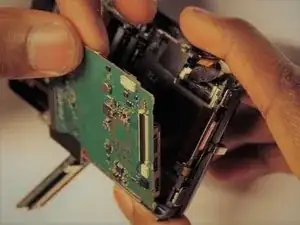

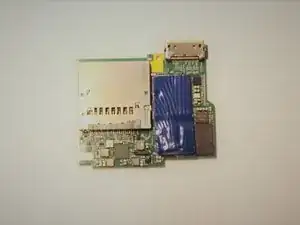

    • Carefully remove the Memory card circuit board.

    • The circuit board should come out with little force. If it does not, make sure all connections are disconnected.

Abschluss

To reassemble your device, follow these instructions in reverse order.
