Sony Cyber-Shot DSC-W120 Lens Assembly Replacement

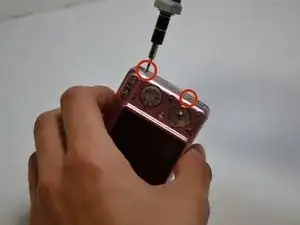

Unscrew the screws on the right side of the camera.

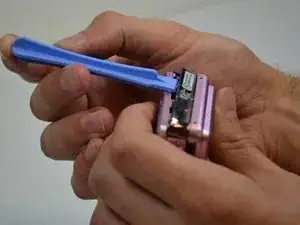

Using a plastic opening tool, gently lift the side of the silver piece on the right side of the camera until it can be removed.

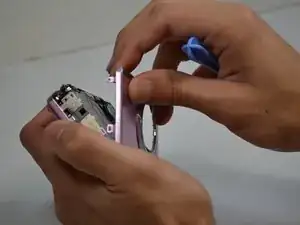

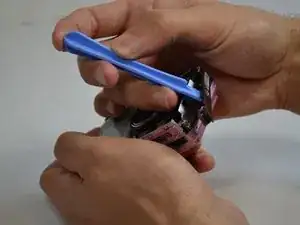

Use a plastic opening tool to separate the front case of the camera, and gently remove it.

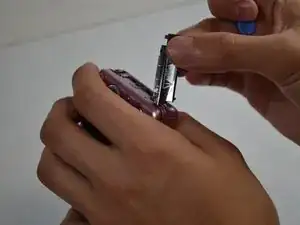

Use a plastic opening tool to remove the silver piece on the left side of the camera.

Remove the three screws from the bottom of the camera.

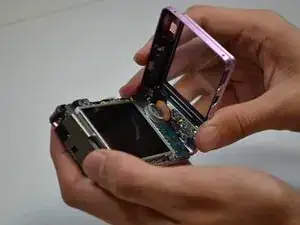

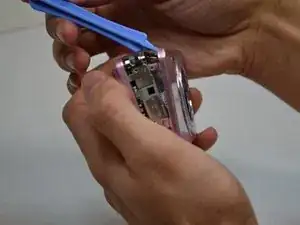

Carefully remove the back case with a plastic opening tool.

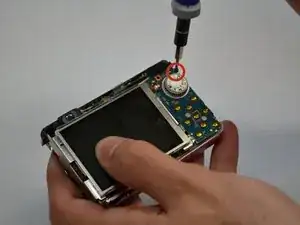

Unscrew the screw just above the mode dial.

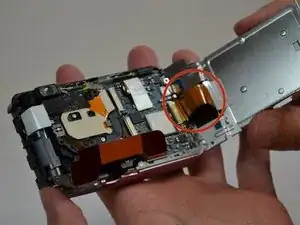

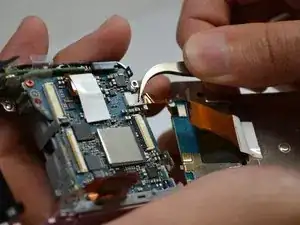

Lift the display from the rest of the camera and gently separate the connecting tape using tweezers.

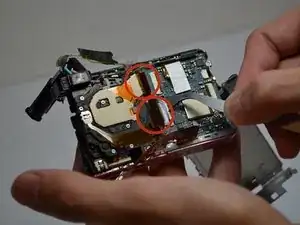

Separate the tape connecting the lens to the rest of the camera using tweezers.

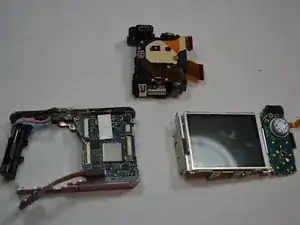

Remove the lens.
