Sony Cyber-shot DSC-H300 Flash Replacement

Geschrieben von: Nassr Al Mandhari
  • Kommentare: 0
Sony Cyber-shot DSC-H300 Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

4 Minuten

Einleitung

This is a step by step guide showing exactly how to replace the flash on the camera. The flash is located on the top of the camera and can be accessed by by pressing the eject button on the front of the camera near the lens. If the flash isn't extending when taking photos please check out our troubleshooting guide.

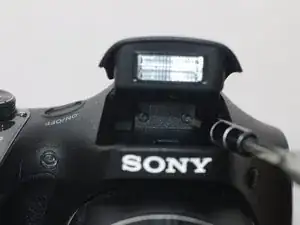

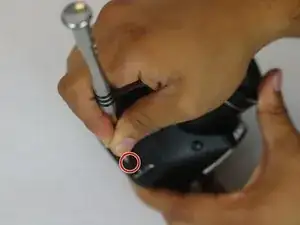

  1. 1ey1vynMKcgJRMA6
    1ey1vynMKcgJRMA6
    HkqxVPeqKRMKX3DR
    GFmuS52jYLkAOnkt

    • Remove the 6mm Phillips #000 screws.

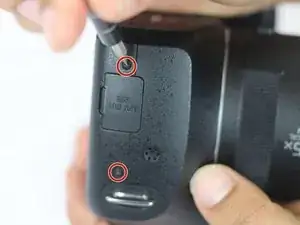

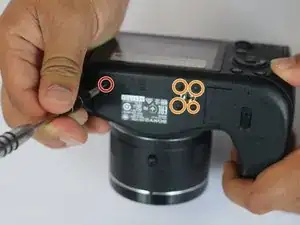

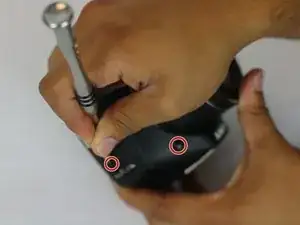

  2. 2GX4QWMNStnoTDFF
    2GX4QWMNStnoTDFF
    5svZqd65ZcJLPAQJ
    RSABTbRamj1PYmJN

    • Remove the five 6mm Phillips #000 screws.

    • Remove the four 3mm Phillips #000 screws.

  3. trRLYoXgTRe46UQP

    • Use the flat end of a plastic spudger to pry apart the rear cover from the body of the camera.

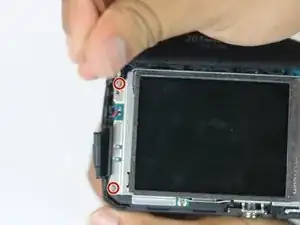

  4. N5JTWFBdQng32BRv

    • Remove the two 6mm Phillips #000 screws.

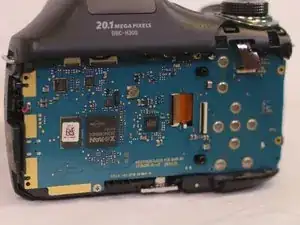

  5. KPVYjdJPdn2SPexm

    • The screen will be loose so remove it.

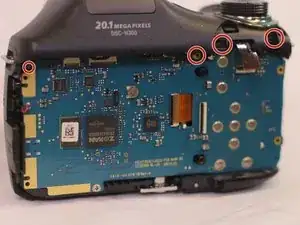

  6. RZkIbGIhgBDxAnVT
    RZkIbGIhgBDxAnVT
    nu4R4gdESjbqPaiD

    • Remove the four 6mm Phillips #000 screws from the upper case of the camera.

    • Remove the upper case.

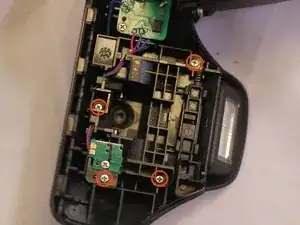

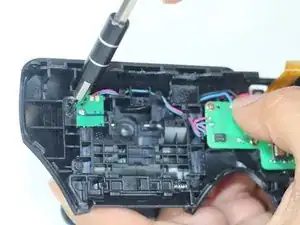

  7. NXJIZhrSK52UjDXd
    NXJIZhrSK52UjDXd
    CIJYc3JIIJRSXbov

    • Remove the four 6mm Phillips #000 screws from the bottom of the case.

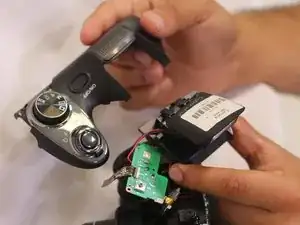

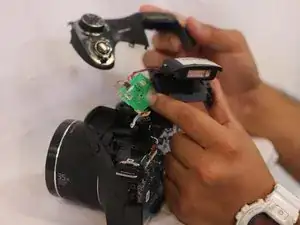

  8. SDWmphxXWT2HLg6K
    SDWmphxXWT2HLg6K
    fFKuUC1ZeRfTSUOq

    • Slide the flash out and away from the camera to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
