Sony Cyber-shot DSC-HX1 Button Assembly Replacement

Geschrieben von: Brianna Greenlaw
  • Kommentare: 2
Sony Cyber-shot DSC-HX1 Button Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Removal and replacement of these buttons requires some previous disassembly and removal of the motherboard.

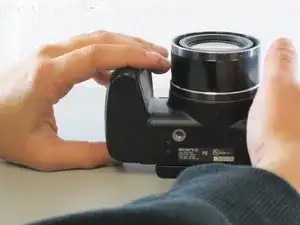

  1. DobvD5cSlHCLciJJ

    • Make sure the surface you place the screen on is clean of debris and dust. Otherwise you risk scratching your screen.

    • Place the camera with the bottom facing you and the lens facing up.

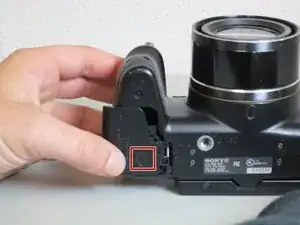

  2. TYmCZueTFrjHYLB1

    • Push down and away from the camera to the left on the indicated indentation in the battery cover. The compartment should slide open as shown.

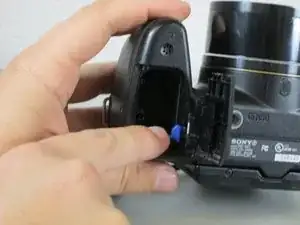

  3. KOobS1ZrY1lH4RaJ
    KOobS1ZrY1lH4RaJ
    IeJRlWPPwFSHRHby

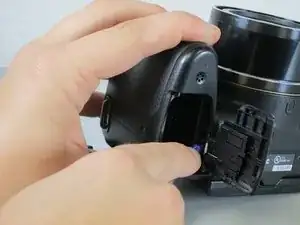

    • Push the blue tab towards the camera body to the right, while simultaneously pulling out the battery.

    • The battery is not shown here. However, normally the battery would be in the displayed compartment.

    I want to know which typa of battery used in DSC -H1 don't cyber shot

    Stanzin Wangyal -

    Which type of battery used in DSC H1

    Stanzin Wangyal -

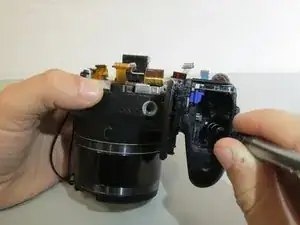

  4. oAoZDNfIlcZBOgLL

    • On the top of the inside the battery compartment, remove the #00 6.0 mm Phillips screw.

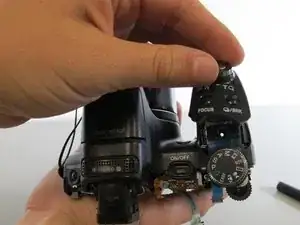

  5. SMmdRTGk21BbBK6r
    SMmdRTGk21BbBK6r
    2FjwdBF43PhekTCY

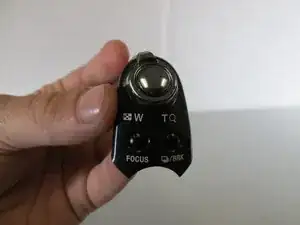

    • Lift the button housing from its position on top of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
