Einleitung
Replacement of this component will involve the disassembly of the screen's enclosure and careful disconnection of its cable.
Werkzeuge
-
-

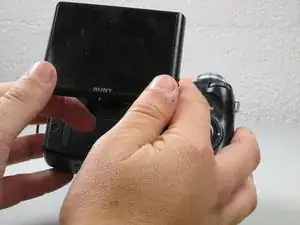

Extend the LCD screen away from the camera to access the screws on the back of its housing.
-
-
-
Place the camera with the lens down.
-
Tilt the screen upwards to see the screw on the bottom of the housing.
-

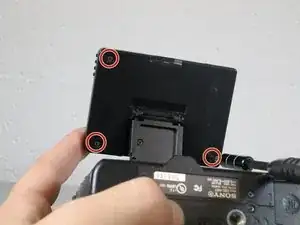

Unscrew this #00 4.0 mm Phillips screw.
-
-
-
Pry the casing apart using your plastic opening tool. Begin by prying at the hole where you removed the screw and continue along the seam.
-
-
-

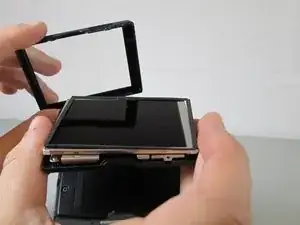

Lift the transparent section of the plastic housing off.
-
Lift the rubber screen bumper off of the screen.
-
-
-
Pull up on the screen to reveal the data attachment cable.
-

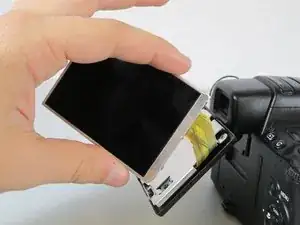

Carefully pull the LCD screen away from enclosure to remove the cable and screen completely.
-
To reassemble your device, follow these instructions in reverse order.
