Sony Cyber-shot DSC-HX1 Lens Assembly Replacement

Geschrieben von: Brianna Greenlaw
  • Kommentare: 7
Sony Cyber-shot DSC-HX1 Lens Assembly Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

40 - 45 Minuten

Einleitung

To take out and replace the lens assembly, you must first completely remove the central motherboard and all other internal components.

  1. DobvD5cSlHCLciJJ

    • Make sure the surface you place the screen on is clean of debris and dust. Otherwise you risk scratching your screen.

    • Place the camera with the bottom facing you and the lens facing up.

  2. TYmCZueTFrjHYLB1

    • Push down and away from the camera to the left on the indicated indentation in the battery cover. The compartment should slide open as shown.

  3. KOobS1ZrY1lH4RaJ
    KOobS1ZrY1lH4RaJ
    IeJRlWPPwFSHRHby

    • Push the blue tab towards the camera body to the right, while simultaneously pulling out the battery.

    • The battery is not shown here. However, normally the battery would be in the displayed compartment.

    I want to know which typa of battery used in DSC -H1 don't cyber shot

    Stanzin Wangyal -

    Which type of battery used in DSC H1

    Stanzin Wangyal -

  4. VoPULuRXh4WKCEyu
    VoPULuRXh4WKCEyu
    WUScTbft5UOLHYx5

    • Close the battery cover by pushing the cover inwards and sliding it to the left to allow more maneuverability when disassembling other parts of the camera.

  5. plLsiCuGxLxvNrws

    • Unscrew the four #00 4.0 mm Phillips screws on the bottom of the camera.

  6. xdBLyJDox6yHldJM

    • Remove the two #00 4.0 mm Phillips screws shown on the side of the camera.

  7. BZgS12KyZQ54D55S

    • Unscrew the #00 4.0 mm Phillips screw on the top next to the view finder.

  8. xKcA6drnnOS4GmDV

    • Pull open the plastic port covers on the side of the camera.

    • Remove the revealed #00 4.0 mm Phillips screw.

  9. Xs6cKJ51BeIfKOyi
    Xs6cKJ51BeIfKOyi
    R4THQYLXbvW2fEBl
    S1jTDCyUYqnBJAG2

    • Lift the back LCD screen to reveal the back of the camera unit.

    • Unscrew the three #00 4.0 mm Phillips screws at the edge and center of the back camera unit.

  10. 4dZnMxTN1B5GQ4Ao
    4dZnMxTN1B5GQ4Ao
    dXnGIlrhydJYspSF
    DkVIqHYFqbsmFebK

    • Using the plastic opening tool, pry apart the bottom of the camera at the line between the four removed screws.

    • Place the camera on its lens and use the plastic opening tool to pry at the crack in the case on all four sides of the camera.

    • Apply moderate force to the backside of the camera enclosure until the two pieces separate.

  11. cAWKymNpDLyxCZls
    cAWKymNpDLyxCZls
    NCCJckKZuKFB2IGW

    • Remove the #00 4.0 mm Phillips screw and the #00 6.0 mm Phillips screw holding the motherboard to the front enclosure.

    • Disconnect the eight ribbon cables from their ports on the motherboard.

    Hi,

    It would be nice if the locations of the 4.0 mm & 6.0 mm screws were defined.

    Also, additional step, or steps are needed to show locations of eight ribbon cable ports and how best to go about disconnecting the cables without damaging the port connectors.

    Jim Fogle -

    There's one more screw to remove under the ribbon cable top left.

    Vincent Montariol -

  12. k6Rob2tvZYA1sANM
    k6Rob2tvZYA1sANM
    35SWcoBomnuGPC1w

    • Detach the metal bracket from the enclosure by removing the two #00 4.0 mm Phillips screws.

  13. SAvtS1G2aBZWFYIp
    SAvtS1G2aBZWFYIp
    CklEJFFQtbdwtx6e

    • If you feel resistance from the board, double check all screws and cables have been removed to avoid damage.

    • Completely remove the motherboard by gently pulling the board away from the camera.

  14. UEphpjmQGXTeKEai

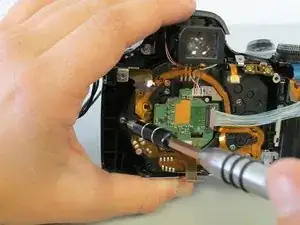

    • Unscrew the #00 6.0 mm Phillips screw on the left side of the lens.

    There's two more screws to remove on the top right and bottom right corners.

    Vincent Montariol -

  15. efUBMHXWHhWkl2EC
    efUBMHXWHhWkl2EC
    GxRlOdTqsqPhtJ1M

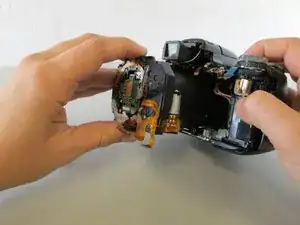

    • The lens assembly contains exposed leads to capacitors. Be very careful to avoid contact or discharge capacitors before handling as touching the capacitors could lead to electric shock.

    • Gently slide the lens assembly out of the front camera housing and remove completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
