Sony Cyber-shot DSC-HX1 Motherboard Replacement

Geschrieben von: Brianna Greenlaw
  • Kommentare: 7
Sony Cyber-shot DSC-HX1 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

30 - 40 Minuten

Einleitung

To remove or replace the motherboard, you must disassemble a majority of the camera. Make sure to keep your screws separated and labeled.

  1. DobvD5cSlHCLciJJ

    • Make sure the surface you place the screen on is clean of debris and dust. Otherwise you risk scratching your screen.

    • Place the camera with the bottom facing you and the lens facing up.

  2. TYmCZueTFrjHYLB1

    • Push down and away from the camera to the left on the indicated indentation in the battery cover. The compartment should slide open as shown.

  3. KOobS1ZrY1lH4RaJ
    KOobS1ZrY1lH4RaJ
    IeJRlWPPwFSHRHby

    • Push the blue tab towards the camera body to the right, while simultaneously pulling out the battery.

    • The battery is not shown here. However, normally the battery would be in the displayed compartment.

    I want to know which typa of battery used in DSC -H1 don't cyber shot

    Stanzin Wangyal -

    Which type of battery used in DSC H1

    Stanzin Wangyal -

  4. VoPULuRXh4WKCEyu
    VoPULuRXh4WKCEyu
    WUScTbft5UOLHYx5

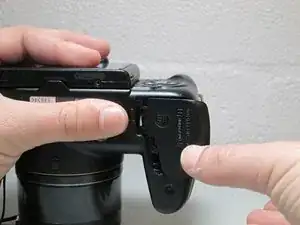

    • Close the battery cover by pushing the cover inwards and sliding it to the left to allow more maneuverability when disassembling other parts of the camera.

  5. plLsiCuGxLxvNrws

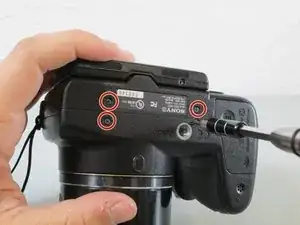

    • Unscrew the four #00 4.0 mm Phillips screws on the bottom of the camera.

  6. xdBLyJDox6yHldJM

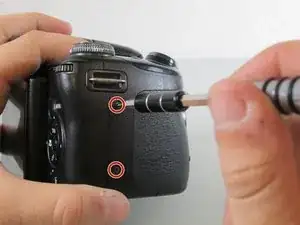

    • Remove the two #00 4.0 mm Phillips screws shown on the side of the camera.

  7. BZgS12KyZQ54D55S

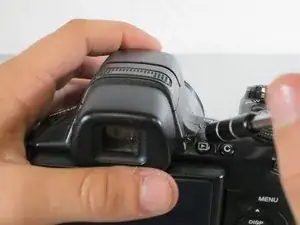

    • Unscrew the #00 4.0 mm Phillips screw on the top next to the view finder.

  8. xKcA6drnnOS4GmDV

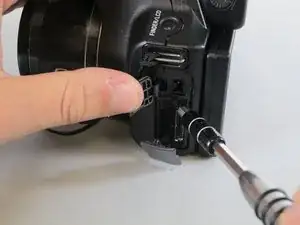

    • Pull open the plastic port covers on the side of the camera.

    • Remove the revealed #00 4.0 mm Phillips screw.

  9. Xs6cKJ51BeIfKOyi
    Xs6cKJ51BeIfKOyi
    R4THQYLXbvW2fEBl
    S1jTDCyUYqnBJAG2

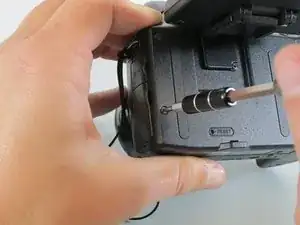

    • Lift the back LCD screen to reveal the back of the camera unit.

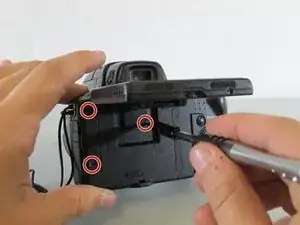

    • Unscrew the three #00 4.0 mm Phillips screws at the edge and center of the back camera unit.

  10. 4dZnMxTN1B5GQ4Ao
    4dZnMxTN1B5GQ4Ao
    dXnGIlrhydJYspSF
    DkVIqHYFqbsmFebK

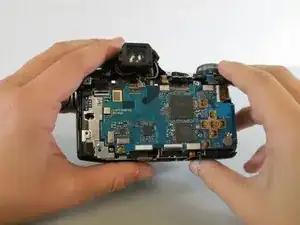

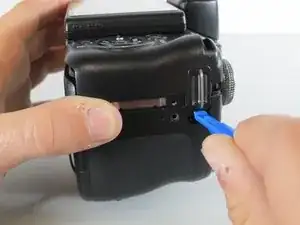

    • Using the plastic opening tool, pry apart the bottom of the camera at the line between the four removed screws.

    • Place the camera on its lens and use the plastic opening tool to pry at the crack in the case on all four sides of the camera.

    • Apply moderate force to the backside of the camera enclosure until the two pieces separate.

  11. cAWKymNpDLyxCZls
    cAWKymNpDLyxCZls
    NCCJckKZuKFB2IGW

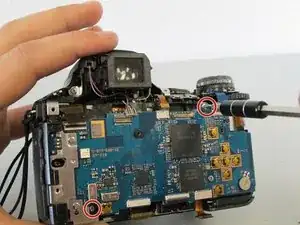

    • Remove the #00 4.0 mm Phillips screw and the #00 6.0 mm Phillips screw holding the motherboard to the front enclosure.

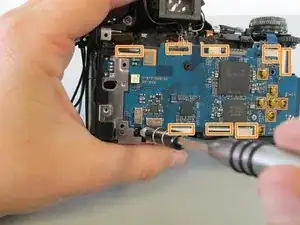

    • Disconnect the eight ribbon cables from their ports on the motherboard.

    Hi,

    It would be nice if the locations of the 4.0 mm & 6.0 mm screws were defined.

    Also, additional step, or steps are needed to show locations of eight ribbon cable ports and how best to go about disconnecting the cables without damaging the port connectors.

    Jim Fogle -

    There's one more screw to remove under the ribbon cable top left.

    Vincent Montariol -

  12. k6Rob2tvZYA1sANM
    k6Rob2tvZYA1sANM
    35SWcoBomnuGPC1w

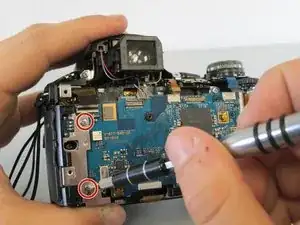

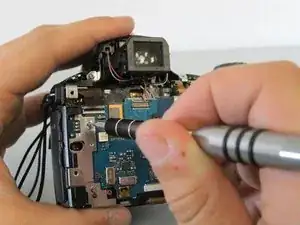

    • Detach the metal bracket from the enclosure by removing the two #00 4.0 mm Phillips screws.

  13. SAvtS1G2aBZWFYIp
    SAvtS1G2aBZWFYIp
    CklEJFFQtbdwtx6e

    • If you feel resistance from the board, double check all screws and cables have been removed to avoid damage.

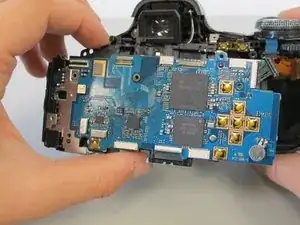

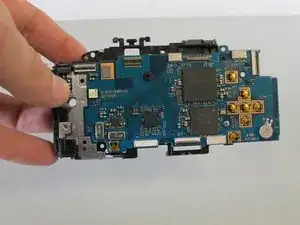

    • Completely remove the motherboard by gently pulling the board away from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Brianna Greenlaw

Mitglied seit: 06/04/15

1100 Reputation

3 Kommentare

Excellent partial disassembly overview!

Several suggestions to make this information more useful:

Provide Sony motherboard part number at top of page where there is a place to list parts.

Please list the size of the battery on the motherboard. My guess is the battery can be easily replaced once the battery type, size and voltage is known.

Distingush between location of 4.0 mm retaining screw and 6.0 mm retaining screw.

Highlight location of eight motherboard ribbon cable ports.

Detail how to disconnect ribbon cables without destroying motherboard cable ports.

Jim Fogle -

I am interested in changing the Mother Board but do not have any idea as to where I can purchase a new/unused replacement. Can anyone help me?

rcronin44 -

Replacement parts for the Sony DSC-HX1 digital cameras should be available from Encompass, https://sony.encompass.com/search/?model.... However, the website indicates the main board is no longer available. Sony also lists Union Electronics, https://www.ued.net/index.html, as a parts supplier but I am unable to find any parts on Union Electronics website. Of course one can always try eBay or Amazon.

The motherboard battery is soldered to the board so it can be dangerous to replace.

My camera sat without a rechargeable battery installed for a few months. The next time I used the camera the motherboard would not retain my settings. I found that leaving the replaceable battery installed for a few days recharged the motherboard battery. I now leave a rechargeable battery installed all the time and swap batteries about once a month when I’m not using the camera.

Jim Fogle -
