Sony Cyber-shot DSC-HX100V LCD Screen Replacement

Geschrieben von: DaQuawn
  • Kommentare: 9
Sony Cyber-shot DSC-HX100V LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 - 20 Minuten

Einleitung

If your screen is cracked, broken, scratched, or otherwise in need of replacing, this guide will show you how to disassemble your camera, remove the screen, and replace it with a new one.

  1. 3rQEQFuUUuueZQqE

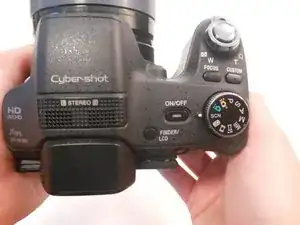

    • Make sure the camera is turned off.

    • Press the ON/OFF button to turn off the camera.

    • Be careful, data may be lost if the camera remains on.

  2. 5WMLv1lcIKQOnbGa
    5WMLv1lcIKQOnbGa
    b6CqZyQ5wJHpHCaJ
    wMB1RSpCZvx2MjWn

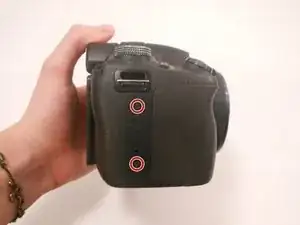

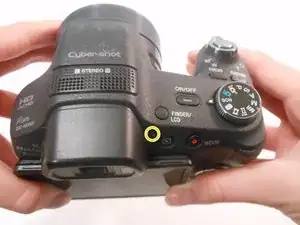

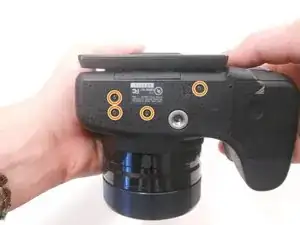

    • Use the Phillips screwdriver size #00 to remove the 1.59mm #00 screws.

    • Remove 2 screws on the side of the camera.

    • Remove 4 screws on the bottom of the camera.

    • Remove 1 screw next to the eyepiece.

    There appear to be 3 different lengths of said 1.57mm screws. Take care to note where they come from

    Step 7 uses one of the short screws. On reassembly, a long one will damage the small black panel it screws into. Referred to in step 9

    Allan Field -

  3. JSOvOxRROcEvche1

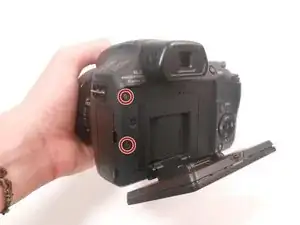

    • Tilt the screen forward.

    • Remove the two 1.59mm #00 screws on the left with the Phillips #00 screwdriver.

  4. 2iNV1Xr5TkJF4iBM

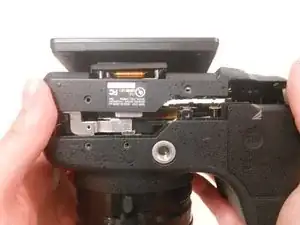

    • Pull the back panel of the camera upward.

    • Use the spudger to help pry open the back panel.

    Remove the four1.59mm #00 screws on the bottum of the body with the Phillips #00 screwdriver.

    Hans Biersteker -

    That’s already been done in stage 2.

    Allan Field -

  5. THNPIxqql2mwLJQ6
    THNPIxqql2mwLJQ6
    bDfQdsISSDPfwOX4

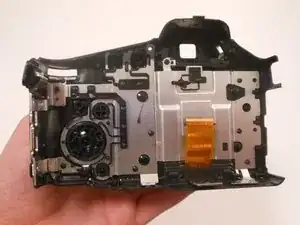

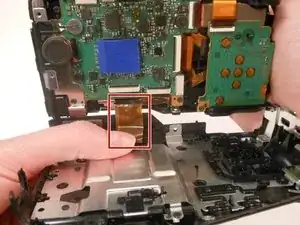

    • Open the back panel to view the inside of the camera.

    • Gently pull the orange ribbon cable to separate the two parts of the camera.

    • Set the front part of the camera to the side.

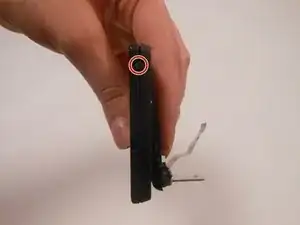

  6. ebymeBYDV5LmdQ4U
    ebymeBYDV5LmdQ4U
    FATEMKPOohIMEeCD

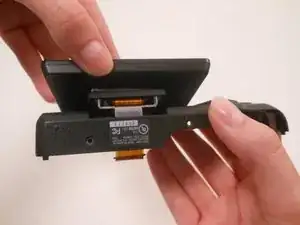

    • Flip the entire back panel so that the screen is facing upwards.

    • Lift the screen upwards to separate it from the back panel.

    • Place the back panel off to the side. Now we will be focusing on the screen.

    • Turn the screen so that the side with the screw is facing you.

    • Remove the 1.59mm #00 screw with the Phillips #00 screwdriver.

    Before you can remove the screen you must undo two screws on the inside of the back panel

    Marc Oliver Voltz -

    On the HX200V , where all the instructions for the HX100V appear to be in order, the little black panels referred to in steps 7 and 9 are keyed together and are quite fiddly to get apart.. It is not as simple as lifting them apart as stated in the instruction for HX200V

    Allan Field -

  7. k5pWlWt6P1ZIUQgQ

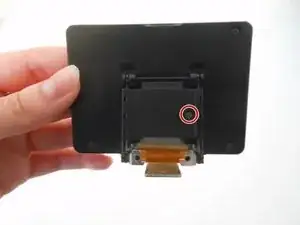

    • Flip the screen over to view the backside.

    • Use a Phillips #00 screwdriver to remove the 1.59mm #00 screw.

  8. yG1UZdhTaSdkErdi

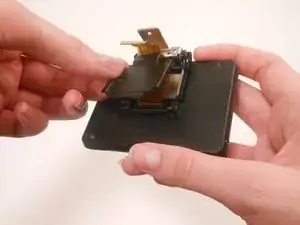

    • Flip the screen so that the screen is facing downwards and the orange ribbon cable is on top.

    • Lift the small, black panel to remove it from the screen.

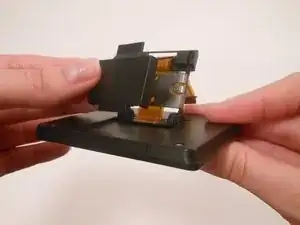

  9. CT1HFxDtHrSmsAWl

    • Lift up the entire panel with the orange ribbon cable.

    • Behind the orange ribbon cable is a small, black panel.

    • Lift the panel upwards and remove it.

  10. y31MRtoa5a1GsJvw

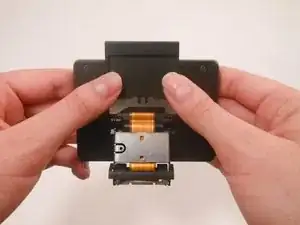

    • Flip the screen so that the orange ribbon cable is facing downwards.

    • Press on the sliding panel and slide it upwards to remove it.

  11. JJ2nhQcMvWIEkTu1

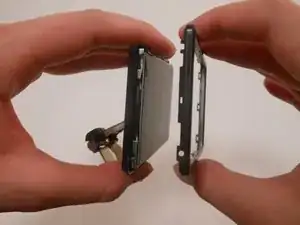

    • Remove the frame from the screen.

  12. jPHumsIHgytKHlFN
    jPHumsIHgytKHlFN
    aetCwSnboT2faclg

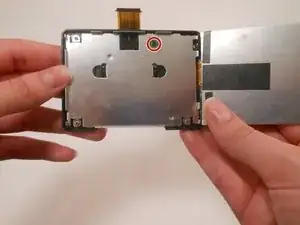

    • Lift the screen upwards to view the inside.

    • Use the Phillips screwdriver size #00 to remove the 1.59mm screw inside the green square.

    Removing the screw is unnecessary, since it makes disconnecting and connecting the screen much harder

    Marc Oliver Voltz -

    Very true … there is absolutely no need to remove the screw in the green square. Doing so makes it nigh impossible to connect the screen

    Allan Field -

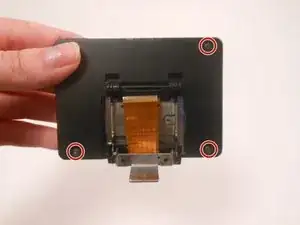

  13. EHXxfPI6mOaFr6El
    EHXxfPI6mOaFr6El
    JyYXyOgCn16yunUc

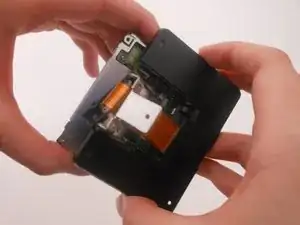

    • Using a Phillips #00 screwdriver, remove the three 1.59mm #00 screws from the back panel.

    • Lift up the black panel on the backside to remove.

  14. EdQZWyIiK1Nd2XlR
    EdQZWyIiK1Nd2XlR
    LcNTSNbcGxssoIoZ

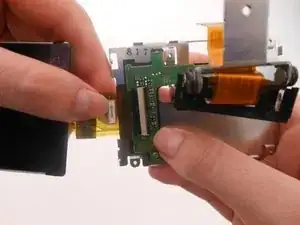

    • Lift the entire screen upwards.

    • Gently tug the orange ribbon cable to remove the screen from the silver panel.

    I followed the steps and removed cracked LCD. upon reassemly of parts after connecting replacement LCD, I found it was very difficult to connect orange ribbon back to camera body because not enough room to work with and cable is too thin and flexible. So it is better to start from Step 7 after found out someone posted the method without detaching from camera body.

    Btw, I reassembled with new LCD but camera wont turn on the LCD panel at all. Changed it back to old one, cracked but was still working, but it wont come up either. So I am stuck to know what could have gone wrong... :(

    Shon -

Abschluss

To reassemble your device, follow these instructions in reverse order.
