Sony Cyber-shot DSC-HX100V Viewfinder Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If you have a faulty viewfinder and would like to know how to replace it yourself, this guide will show you how to do just that. By following these 6 simple steps, you will have your camera repaired within a few minutes and you will also save a couple of bucks.

  1. KmDZSFJViKRCFYPm

    • Make sure camera is turned off.

    • Press the ON/Off button to turn off the camera.

    • WARNING: Data may be lost if the camera remains on.

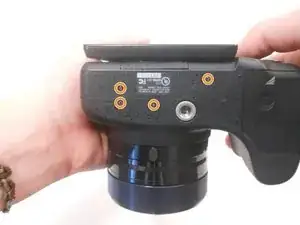

  2. ioeF3KRpRNA2x6o3
    ioeF3KRpRNA2x6o3
    xKg4pTMyDkJhV6qr
    v6wBCFxAM6fCXFfE

    • Use the Phillips screwdriver size #00 to remove the 1.59mm #00 screws.

    • Remove 2 screws from the side of the camera.

    • Remove 4 screws on the bottom of the camera.

    • Remove 1 screw next to the eyepiece.

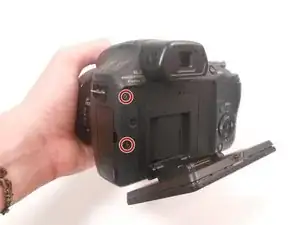

  3. CIHcc32Mm4qYxLa3

    • Flip the screen back to reveal 2 hidden screws.

    • Remove the two 1.59mm #00 screws on the left with the Phillips #00 screwdriver.

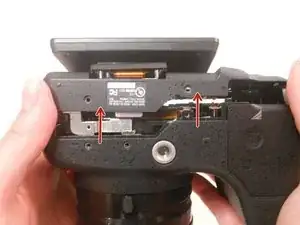

  4. 5w1VqHK2TxxHhawj

    • Pull the back panel of the camera upward.

    • Use a spudger to help pry open the back panel.

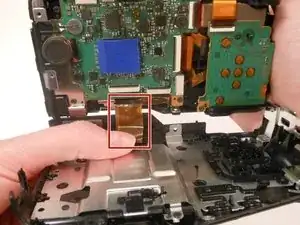

  5. yYNiZ6gHUVRLL3AX

    • Open the back panel to view the inside of the camera.

    • If the orange ribbon cable disconnects from its designated port, do not panic. The cable is easy to reinsert.

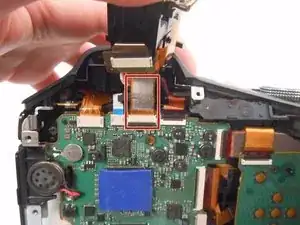

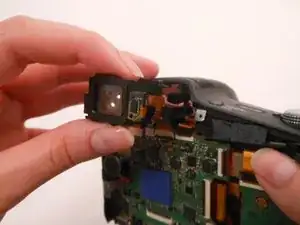

  6. PFFC4VPCZSGLxA5s
    PFFC4VPCZSGLxA5s
    Sv5fWKJtwMlwo3Ju
    Rbwu6DYATC2kQ2ME

    • Carefully pull out the the eyepiece.

    • Detach the orange ribbon cable that connects it to the green panel by carefully pulling outwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
