Sony Cyber-shot DSC-HX80 LCD Screen Replacement

Geschrieben von: Gordon Jones
  • Kommentare: 10
Sony Cyber-shot DSC-HX80 LCD Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

25 Minuten

Einleitung

In the event of a damaged LCD screen, the only option may be for you to replace it. The following guide will take you step by step through the process.

  1. fQFRspNypFZGWdgS

    • Before disassembling any part of the camera, turn off the power by pressing down on the ON/OFF button. The ON/OFF button is located on top of the camera.

  2. dAAZCVUMMxhEVkSY

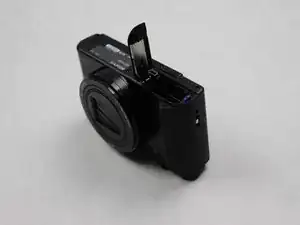

    • Open the compartment located at the bottom of the camera. Slide the LOCK/OPEN switch to the OPEN side. Locate the small blue tab on the side. Pull it in direction away from battery. Remove the battery and set it aside.

  3. XpwJNHeHQXPddEn1
    XpwJNHeHQXPddEn1
    QkTsXX2OUSuDqqVP

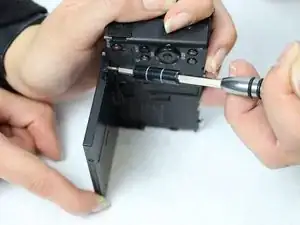

    • Flip LCD screen upwards.

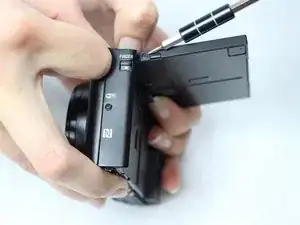

    • Use the PH000 Phillips head screwdriver to remove the two 0.3 mm Phillips black screws located on the sides of the LCD screen. Place screws on magnetic mat or plastic bag.

    To complete this repair, I need the connecting piece behind the LCD. Do you have that piece if not wjere can Iget it or canyou get it for

    Frank Mohammed -

    To complete this repair, I need the connecting piece behind the LCD. Do you have that piece if not wjere can Iget it or canyou get it for me

    Frank Mohammed -

  4. 6LEjuO5cFtNUjAJl
    6LEjuO5cFtNUjAJl
    jTSMMKWmRnkhgKOY

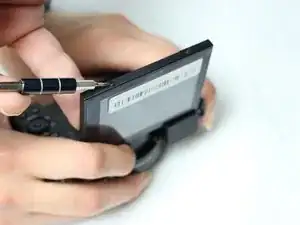

    • Use the PH000 Phillips head screwdriver to remove the two additional 0.3 mm black Phillips screws located on the top edge of the LCD screen. Place screws on magnetic mat or plastic bag.

  5. 1CV2Ma6IUPIUgXjL
    1CV2Ma6IUPIUgXjL
    IoZOofhMJPxsKX6Z
    jMMPPJ6hvOsWSpGi

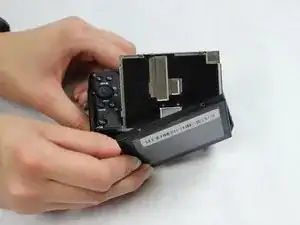

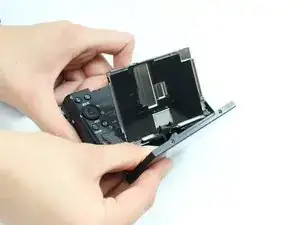

    • Use a nylon spudger to gently remove the damaged LCD screen off the camera.

    • Replace LCD screen with new one.

    What is the black paper/plastic like strip at the bottom connecting the flip up part?? Mine detached from my camera and now the screen is black. Is that fixable?

    Brittani -

    Whst is the name of the connecting ribbons piece at the back of the LCD. On my camera ..Sony hx 80, the end of that piece that connects it to the camera is broken. Do you have that part? If not, where can I get it..reply to….frango@rogers.com…I am in Canada. THANKS.

    Frank Mohammed -

    2 more photos showing the removal of the cables and then their reattachment would earn the author points.

    Randy Post -

    I agree, this how-to is skipping the hard part. Just busted one of the ribbon cables 😔

    Mike Millis -

Abschluss

To reassemble your device, follow these instructions in reverse order.
