Einleitung
If your frontal lens is broken or malfunctioning follow this guide to replace lens. The tools required for this guide are a PH000 screwdriver, plastic opening tool, metal spudgers and a magnetic mat or plastic bag.
-
-

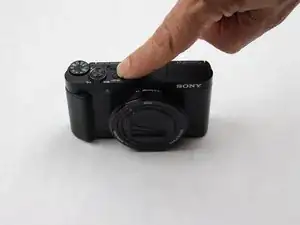

Before disassembling any part of the camera, turn off the power by pressing down on the ON/OFF button. The ON/OFF button is located on top of the camera.
-
-
-

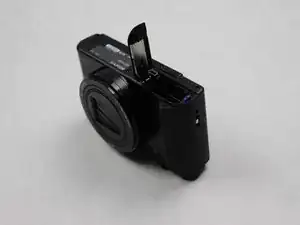

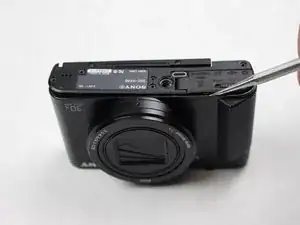

Open the compartment located at the bottom of the camera. Slide the LOCK/OPEN switch to the OPEN side. Locate the small blue tab on the side. Pull it in direction away from battery. Remove the battery and set it aside.
-
-
-

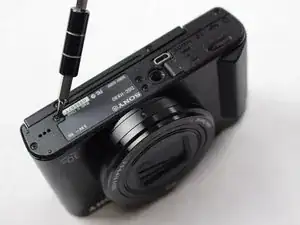

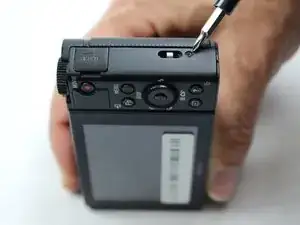

Place the camera upside down and remove the screws located at the bottom of the camera using the PH000 head screwdriver.
-
At the end of this step, there will be a total of five 0.4mm Phillips screws. Place screws on a magnetic mat or plastic bag.
-
Leave the two screws holding the LCD screen in place.
-
-
-
Keep working alongside each side of the camera until all screws are addressed.
-

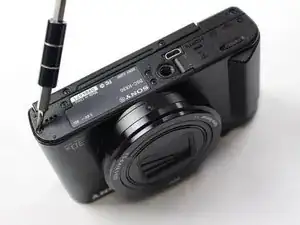

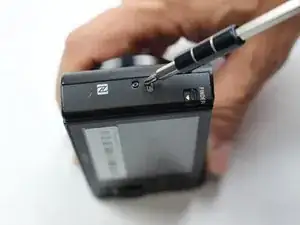

In addition to the five screws from the bottom, a total of three more 0.4 mm black Phillips screws are located as indicated in the photo. Place them on the magnetic mat or plastic bag.
-
-
-

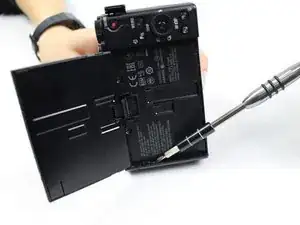

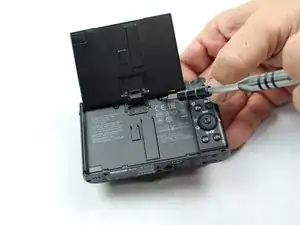

Flip the LCD screen upwards. Use the PH000 Phillips head screwdriver to remove screws located under the LCD screen.
-
For this step there will be an additional three 0.3 mm black Phillips screws. Place them on magnetic mat or plastic bag.
-
-
-

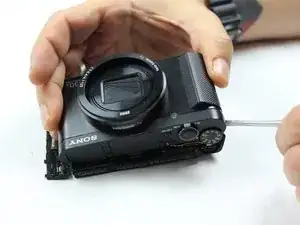

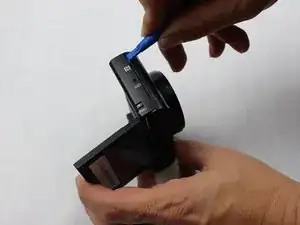

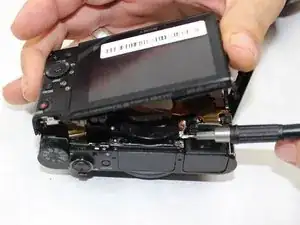

Use the plastic opening tools included in the iFixit tool kit first. If the shell/parts do not detach from each other, use metal spudgers as a last resort to loosen/separate the plastic shell of the camera. Keep in mind that there may be more screws holding parts together. Work delicately and separate sides evenly.
-
-
-

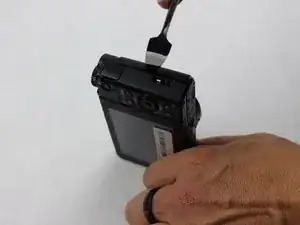

Locate the two 0.3 mm silver screws that hold the face of the screen in place. Use the PH000 Phillips head screwdriver to remove screws.
-
Place the two 0.3 mm screws on magnetic mat or plastic bag.
-
-
-

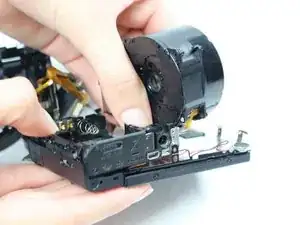

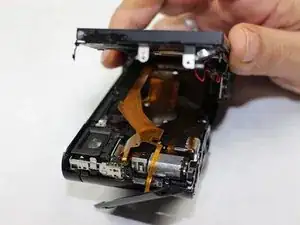

Locate the thin silver plate with a golden plastic ribbon attached. This ribbon holds the lens and the rest of the camera together.
-
Find the two 0.3 mm silver Phillips screws on the silver place. Remove them with a PH000 Phillips head screwdriver. Place the two screws on a magnetic mat or plastic bag.
-
-
-

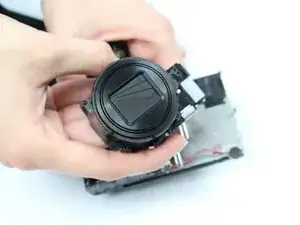

After removing screws and the golden ribbon, the frontal lens will be completely detached from the camera.
-
Replace frontal lens with new one.
-
To reassemble your device, follow these instructions in reverse order.
