If viewfinder is broken or is not working properly you can follow these steps to replace it for a new one. These steps can also help in replacing shutter button and flash. For this guide you will need a PH000 screwdriver, a plastic tool opener, metal spudgers and a magnetic mat or plastic bag.

  1. PZiejpcFp3hROeGT

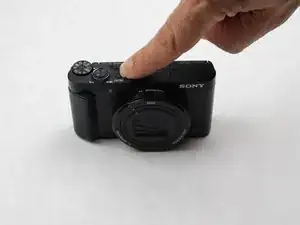

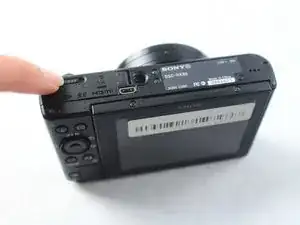

    • Before disassembling any part of the camera, turn off power by pressing down on the ON/OFF button. The ON/OFF button is located on top of the camera.

  2. KQ5tbZK4ROevLtmg
    KQ5tbZK4ROevLtmg
    teMPMWCFAZ25hO1H

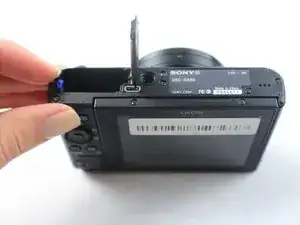

    • Open the compartment located at the bottom of the camera. Slide the LOCK/OPEN switch to the OPEN side. Locate the small blue tab on the side. Pull it in direction away from the battery. Remove the battery and set it aside.

  3. hVmcuc1qedCkFmRw
    hVmcuc1qedCkFmRw
    r1UHGIfcTUiTaTKj

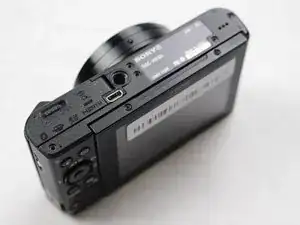

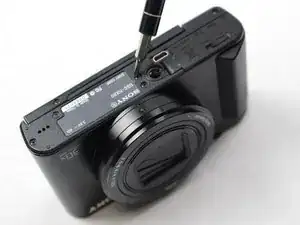

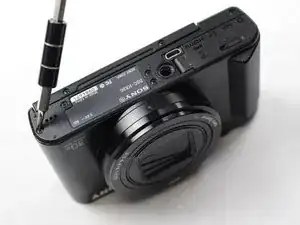

    • Use the PH000 Phillips head screwdriver (from iFixit tool kit) to take the screws out. Begin unscrewing from the bottom of camera. At the end of this step there will be a total of five black 0.4 mm Phillips screws. Place them on a magnetic mat or a plastic bag.

  4. bpugFpKjvYpmMsO2
    • Do not remove the screws holding the LCD screen together.

  5. ixvBHkbmLlZkQjPg
    ixvBHkbmLlZkQjPg
    dBI6uPEGrcFGD2i2
    ovVakQqPkKYcFUKU

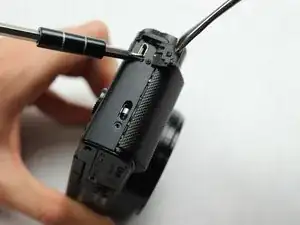

    • Keep working alongside the edge of camera until no screws are left in place. In addition to the five screws from the bottom, there will be a total of three more 0.4 mm black Phillips screws. Place them on the magnetic mat or plastic bag.

  6. iIrd4BGD1sQjQjB2
    iIrd4BGD1sQjQjB2
    ZhFdlLrVctQiULFG
    HmuBpGrIYF3h2GKe

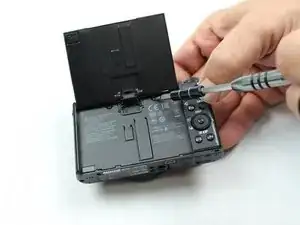

    • Flip LCD screen upwards.

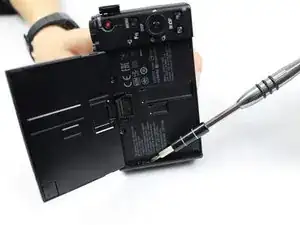

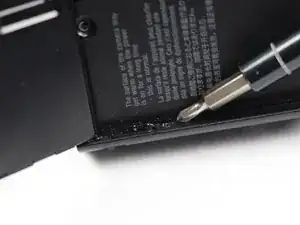

    • Use the PH000 Phillips head screwdriver to remove screws located under the LDC screen. For this step there will be an additional three 0.3 mm black Phillips screws. Place them on magnetic mat or plastic bag.

  7. pIdbQUqwDaEwLnit
    pIdbQUqwDaEwLnit
    FxikTKykQfVXwHXh
    od1VUbfjUvNnjjCC

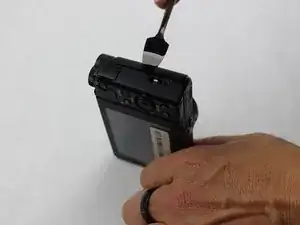

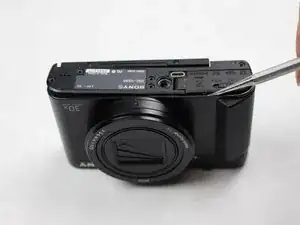

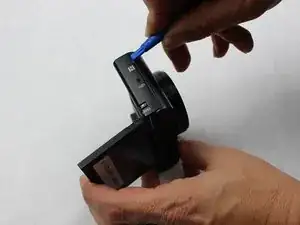

    • Use the plastic opening tools included in the iFixit tool kit first. If the shell/parts do not detach from each other, use metal spudger (from iFixit tool kit) to loosen/separate the plastic shell of the camera. Keep in mind there may be more screws holding parts together. Work delicately and separate sides evenly.

  8. THnMcL2RBiiwqZ1q

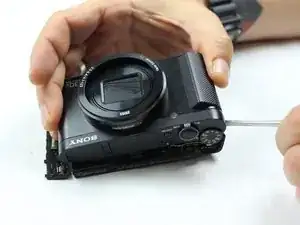

    • After loosening the plastic edges of the camera, gently pull the LCD screen side upwards.

  9. 15v2XZMaSWlvKSIv
    15v2XZMaSWlvKSIv
    flyGHcBVVgfjRa3N

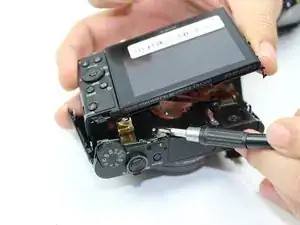

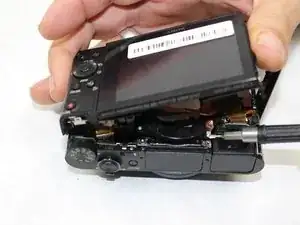

    • Locate the two silver screws that hold the top piece in place.

    • Use the PH000 Phillips head screwdriver to remove screws. Place the two 0.3 mm silver Phillips screws on magnetic mat or plastic bag.

  10. kdPyW1PASrNVVJBI

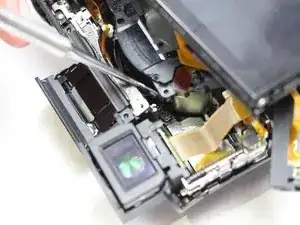

    • Use metal spudger to detach top part off the rest of the camera. Be extremely careful as there is a thin golden film/plastic ribbon holding the top piece to the rest of the camera.

  11. iom1g4EMmLoJIa5B

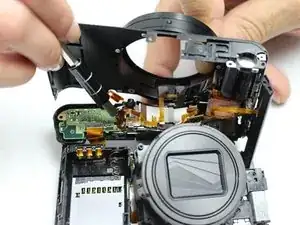

    • Look for the screws located on the circuit board. These screws are what allow the thin golden film/plastic ribbon to connect the top piece to the rest of the camera.

    • Remove circuit board screws by using the PH000 Phillips head screwdriver. Place the two 0.4 mm silver Phillips screws on magnetic mat or plastic bag.

  12. RGtFi22EUWDKZTpg
    RGtFi22EUWDKZTpg
    xP4jEoitqmBvUbRx

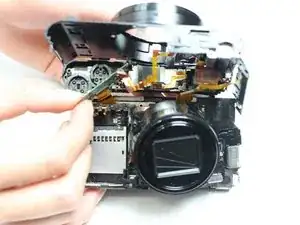

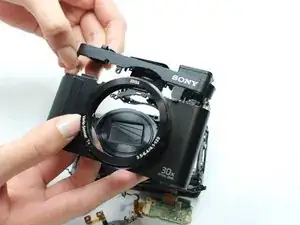

    • Gently pull the circuit board off the top piece of the camera. The top piece will be detached from the rest of the camera. Removing the top of the camera will make it easier to access the viewfinder.

  13. r2m5VFR4dUDtaZDF
    r2m5VFR4dUDtaZDF
    pZUCVtTlwCMYQSkG
    dpXYOHAWYrRPVy3R

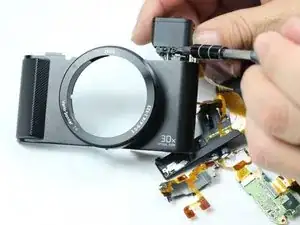

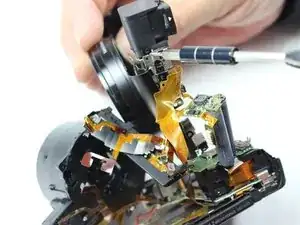

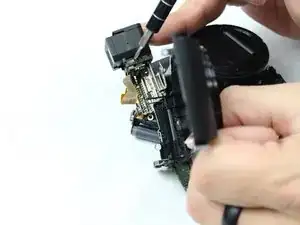

    • Locate the three 0.3 mm black Phillips screws around the viewfinder.

    • Remove screws by using the PH000 Phillips head screwdriver. Place the screws on magnetic mat or plastic bag.

  14. dwfYQ4SDgryhFatU
    • Find one additional 0.3 mm black Phillips screw located at the bottom of the viewfinder. This screw attaches the circuit board to the viewfinder.

    • Remove the screw with a PH000 Phillips head screwdriver. Place the screw on magnetic mat or plastic bag.

  15. wAb3paTRpcwfMkHW

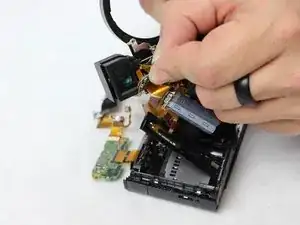

    • Gently detach circuit board from viewfinder.

  16. eOQ2AJ2y2ymuOpLP

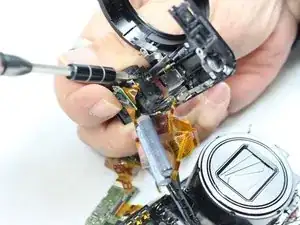

    • After removing circuit board, find two 0.3 mm black Phillips screws located at the bottom of viewfinder. Remove the screws with PH000 Phillips head screwdriver. Place the screws on magnetic mat or plastic bag.

  17. hYeruielXewVgxDk
    hYeruielXewVgxDk
    1hniM2FEnQLywM4M

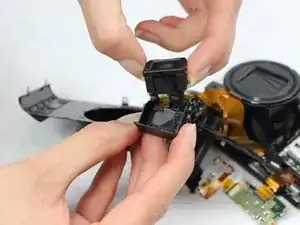

    • Gently remove the viewfinder from the plastic shell.

    • Replace the viewfinder with new viewfinder piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
