Sony Cyber-shot DSC-P52 Shutter Motor Replacement

Geschrieben von: Greg Hermansen
  • Kommentare: 1
Sony Cyber-shot DSC-P52 Shutter Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

20 - 40 Minuten

Einleitung

This guide explains how to remove and replace the shutter motor in the Sony Cybershot DSC-P52

  1. Zdifga6btoHisELE

    • Open the battery compartment and remove the batteries.

    • Remove all of the visible screws on the outside of the case.

    • There should be three of them that are all easily located.

  2. dti2SEuQUx1wHLPb

    • Open the memory card compartment.

    • Remove the screw next to the memory card slot.

  3. RIWPa3odMwLExFdN

    • Pull apart the front and back cover pieces carefully.

    • The front cover should come completely free with little effort.

    • The back cover will still be attached to the circuit board.

  4. NJMrDPPJbpBLcnNF

    • Simultaneously unclip all of the clips holding in the circuitry. Remove the back case.

    • The circuitry will still be connected to the back case by ribbon cables.

  5. oAAMsW2xjYxNjqmm

    • Open the case as shown.

  6. ukQVEFTlNGv4PJ2G

    • Unclip the clip holding the ribbon cable in.

    • Other ribbon cables might not have a clips.

  7. HAvdOMHnKpQhaqsZ

    • Pull the ribbon cable out.

  8. EdwyZ455qTC1IgAs

    • Remove all six screws on the front side of the motherboard circled in the picture.

    • Pull the motherboard from the rest of the housing.

    • It will still be connected to the flash unit.

  9. XKNAHOuUYkNGFkTe

    • Remove the cable on the back side of the motherboard.

  10. TML1WUe1nqiTw6ZL

    • Detach the ribbon cables shown.

    • Careful! Touching the leads of the large yellow capacitor can result in a painful shock.

    • Remove the flash unit from the motherboard.

    I actually accidentailly did touch the capacitor - It did indeed hurt. Don't do it!

    AlexPlaysRoblox -

  11. BL3TnafwedUvNjcg

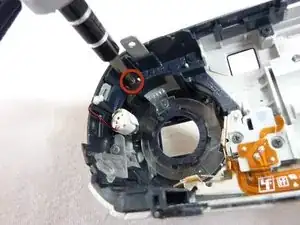

    • Remove screw securing motor and mount in place.

    • Be careful to leave shutter gears in the correct position

  12. PiDsfqa4UWoZ2tdL

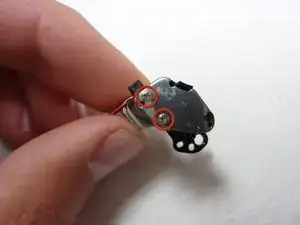

    • Remove the two screws holding motor to mount/gears.

    • Remove the motor from the mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
