Sony Cyber-shot DSC-P52 Viewfinder Replacement

Geschrieben von: Kari Johnson
  • Kommentare: 0
Sony Cyber-shot DSC-P52 Viewfinder Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

This guide explains how to replace the viewfinder in the Sony Cybershot DSC-P52

  1. Zdifga6btoHisELE

    • Open the battery compartment and remove the batteries.

    • Remove all of the visible screws on the outside of the case.

    • There should be three of them that are all easily located.

  2. dti2SEuQUx1wHLPb

    • Open the memory card compartment.

    • Remove the screw next to the memory card slot.

  3. RIWPa3odMwLExFdN

    • Pull apart the front and back cover pieces carefully.

    • The front cover should come completely free with little effort.

    • The back cover will still be attached to the circuit board.

  4. NJMrDPPJbpBLcnNF

    • Simultaneously unclip all of the clips holding in the circuitry. Remove the back case.

    • The circuitry will still be connected to the back case by ribbon cables.

  5. oAAMsW2xjYxNjqmm

    • Open the case as shown.

  6. ukQVEFTlNGv4PJ2G

    • Unclip the clip holding the ribbon cable in.

    • Other ribbon cables might not have a clips.

  7. HAvdOMHnKpQhaqsZ

    • Pull the ribbon cable out.

  8. joZvmBBd1ZeFtDfD

    • Remove the two additional screws on the back of the lens.

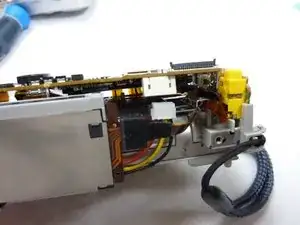

  9. psty4egarTbvriya

    • Detach the ribbon cables and unplug the cable leading to the back of the motherboard.

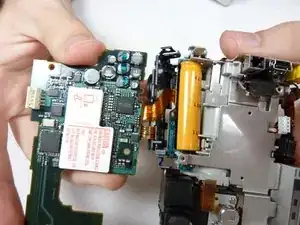

  10. I43sMxZXXihUjRbm

    • Remove the motherboard and the flash from the rest of the hardware.

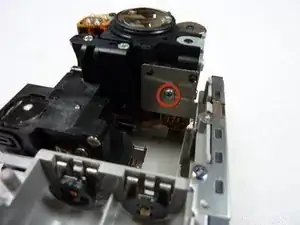

  11. buwLyBgsHPcwXsUt

    • Remove the screw indicated in the picture to detach the lens and the viewfinder from the other hardware.

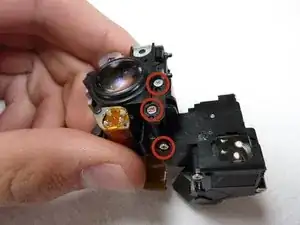

  12. pNdwPvKuDkrVNUtR

    • Remove the three screws shown to separate the lens from the viewfinder.

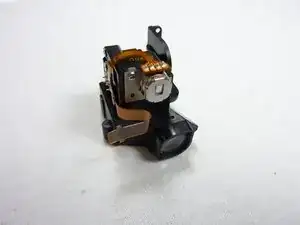

  13. QOaLqgyCCCdVpbQX

    • Purchase a new viewfinder.

    • Repeat the previous steps in reverse order to rebuild.

Abschluss

To reassemble your device, follow these instructions in reverse order.
