Einleitung

Taking out the LCD is one of the more difficult things to do on your Cyber-shot. Because the LCD is located at the back of the camera you will have to take apart the entire camera just to reach it.

  1. LIqAO2axT5tQyEZk
    LIqAO2axT5tQyEZk
    wv5tqGMYrQIr3KSd
    • Locate the battery door at the bottom of the camera.

    • Press down on the door and slide it back. The door will pop open.

  2. 6FYuZBMbTJ2YZPWl
    • Remove the battery from the door that you opened in the previous step.

  3. lVLDWTNZSPK3otA6
    lVLDWTNZSPK3otA6
    gfCyPgT2woJ3yyHj
    NVu4BYsuyORP2jPH
    • There are two screws on the left and right sides of the camera, and two screws on the bottom.

    • Use a PH00 screwdriver and remove the six 2.9mm screws.

  4. SaZIDW2GWVxApNkf
    SaZIDW2GWVxApNkf
    f2NIGkQgvhoSkBAD
    • Use hands to gently pry the front casing away from the camera.

  5. i6vSVy1JEKvMYUIm
    i6vSVy1JEKvMYUIm
    CAhxo3XYPqF1sGg2
    • Use the tip of a spudger to flip up the tab on the ZIF connector securing the motherboard ribbon cable.

    • The second picture shows what these tabs look like in their open positions.

  6. PcCRQm5ugiUUh45Y
    • Grasp the CCD Sensor Module and remove it.

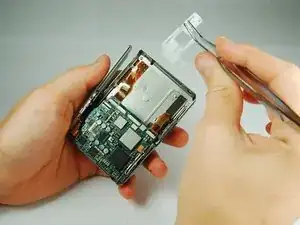

  7. EM1deYeKucEKKHLb
    EM1deYeKucEKKHLb
    IRtC1Yf2EgaqOHHU
    • Use tweezers to slide the white piece on the back of the back cover to the right.

    • This will dislodge the white piece, allowing you to remove it from the back cover.

  8. 6XnmE2DRlydv5AXr
    • Use the tip of a spudger to flip up the tab on the ZIF connector securing the motherboard ribbon cable.

    • Remove the ribbon cables from these two ZIF connectors.

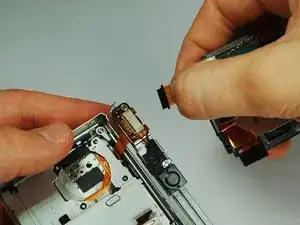

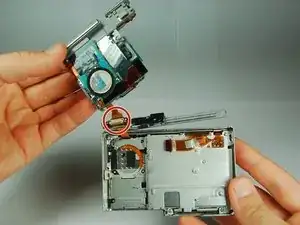

  9. hlu534DfP6kpAjqN
    hlu534DfP6kpAjqN
    UTp34cpG6uYd1rOd
    • Lift the motherboard assembly up and rotate it so you can easily see where the internals connect to the back cover.

    • Remove the ZIF connectors from the clamp on the left end of the top piece.

    • The motherboard assembly is now separated from the back cover.

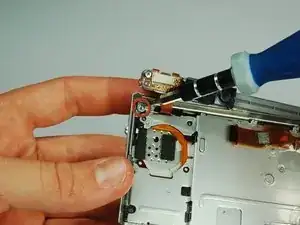

  10. RgnFTjR1y1NVfOPZ
    RgnFTjR1y1NVfOPZ
    ZcO3BRPRyYMfoSlt
    • Use a PH00 screwdriver to remove the 2.9 mm phillips screw on the upper left side of the case.

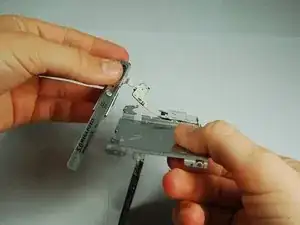

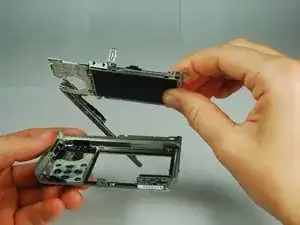

  11. 6csPGJDRR1aDHver
    6csPGJDRR1aDHver
    3e3bY2aU23PB3NUh
    • Remove the back frame from the LCD assembly.

    • Turn the LCD assembly over and gently pull the top bar off (which has the shutter and power buttons).

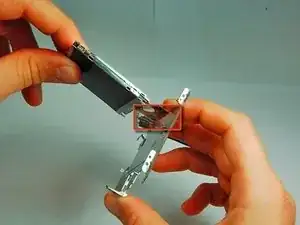

  12. sFOl1BGkrG6Z1sLw
    • Pull the tape off that holds the LCD to the assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
