Einleitung

This guide demonstrates separating the motherboard from the rest of the internals of the Sony Cyber-shot DSC-T1.

  1. LIqAO2axT5tQyEZk
    LIqAO2axT5tQyEZk
    wv5tqGMYrQIr3KSd
    • Locate the battery door at the bottom of the camera.

    • Press down on the door and slide it back. The door will pop open.

  2. 6FYuZBMbTJ2YZPWl
    • Remove the battery from the door that you opened in the previous step.

  3. lVLDWTNZSPK3otA6
    lVLDWTNZSPK3otA6
    gfCyPgT2woJ3yyHj
    NVu4BYsuyORP2jPH
    • There are two screws on the left and right sides of the camera, and two screws on the bottom.

    • Use a PH00 screwdriver and remove the six 2.9mm screws.

  4. SaZIDW2GWVxApNkf
    SaZIDW2GWVxApNkf
    f2NIGkQgvhoSkBAD
    • Use hands to gently pry the front casing away from the camera.

  5. i6vSVy1JEKvMYUIm
    i6vSVy1JEKvMYUIm
    CAhxo3XYPqF1sGg2
    • Use the tip of a spudger to flip up the tab on the ZIF connector securing the motherboard ribbon cable.

    • The second picture shows what these tabs look like in their open positions.

  6. PcCRQm5ugiUUh45Y
    • Grasp the CCD Sensor Module and remove it.

  7. OMuS2FKiCv45IjMw
    OMuS2FKiCv45IjMw
    vH34LNowFErLpqgp
    keTowEBh6CJRGyqf
    • This camera houses a very strong capacitor (the black cylinder). Avoid touching anything around the two wires coming out of the top. Doing so will risk serious electric shock.

    • Carefully disengage the internal components from the casing by lifting at the bottom end and giving a gentle tug.

    • The components are still connected to the casing via cables, but they are much more maneuverable.

    • The flash module is shown on the right hand side.

  8. LxbCn22XZxITggXb
    LxbCn22XZxITggXb
    AneXMXOpkbyG1Ino
    • Use the tip of a spudger to flip up the tab on the ZIF connecter securing the motherboard ribbon cable.

    • Grasp the flash module by the bottom and remove it.

  9. EM1deYeKucEKKHLb
    EM1deYeKucEKKHLb
    IRtC1Yf2EgaqOHHU
    • Use tweezers to slide the white piece on the back of the back cover to the right.

    • This will dislodge the white piece, allowing you to remove it from the back cover.

  10. 6XnmE2DRlydv5AXr
    • Use the tip of a spudger to flip up the tab on the ZIF connector securing the motherboard ribbon cable.

    • Remove the ribbon cables from these two ZIF connectors.

  11. hlu534DfP6kpAjqN
    hlu534DfP6kpAjqN
    UTp34cpG6uYd1rOd
    • Lift the motherboard assembly up and rotate it so you can easily see where the internals connect to the back cover.

    • Remove the ZIF connectors from the clamp on the left end of the top piece.

    • The motherboard assembly is now separated from the back cover.

  12. aBbNIHUTS1OJdTVX
    • Locate the screw inside the small white piece on the motherboard assembly.

    • Remove this 2.9mm screw using a PH00 screwdriver.

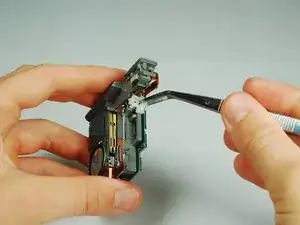

  13. iFq6EXAmUDCpMZlX
    • Use tweezers to remove the small white piece from the motherboard assembly.

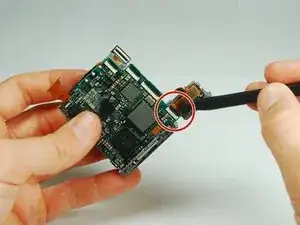

  14. xPPwvqtnfPgP2oSD
    • Turn the motherboard assembly over.

    • Use a spudger to open the ZIF connector on the motherboard.

    • Remove the ribbon cables from the opened clip.

  15. eWDMgHONShi3ps4f

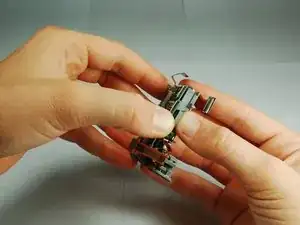

    eWDMgHONShi3ps4f

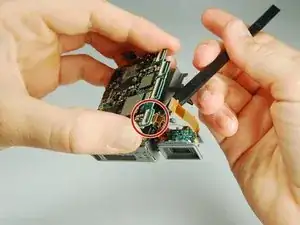

    suqxt2fnQOeqQBIW
    • Pry the motherboard slightly apart form the motherboard assembly.

    • Be careful while separating the board so that you do not damage the ribbon cables or other components.

    • Disconnect the ribbon cable connecting the battery pack to the motherboard.

  16. XDrDXv23dUeDwwPN
    XDrDXv23dUeDwwPN

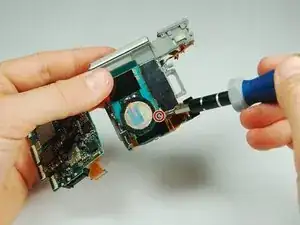

    MIlvO1H3ksEOKmfD

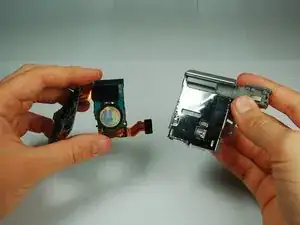

    LcCCZTKQ4VAuiw2E
    • Pull the motherboard up from the battery pack and flip the motherboard assembly over.

    • Use a PH00 screwdriver to remove the 2.9mm screw connecting the speaker to the battery pack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
