Sony Cyber-shot DSC-T9 CCD Module Replacement

Geschrieben von: Stephannie Allen
  • Kommentare: 0
Sony Cyber-shot DSC-T9 CCD Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

This guide will teach the user how to disassemble and access the CCD module for replacement or installation.

  1. rTcgis2rA2FBYUK4

    • The battery cover is located on the right side of the camera.

    • Slide the cover to expose the battery.

  2. mIV4RPQ3BEHBnTZl

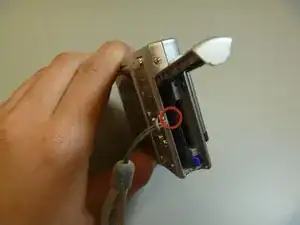

    • Ensure that the battery lines up properly with the slot in the camera.

    • Slide battery in.

    • Slide cover closed.

    • Battery not shown

  3. OPlkYCl2krD4i62a
    OPlkYCl2krD4i62a
    DEcgngIMnvjrWmNc
    tjbljSTTy2oMGUpD

    • Remove screws from outside of camera. There are 6 screws total.

    • 3 screws on underside.

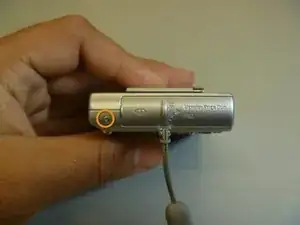

    • 1 screw on right side, near battery cover.

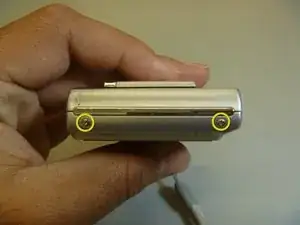

    • 2 screws on left side.

  4. jCx3NvAAmNgOI1LN

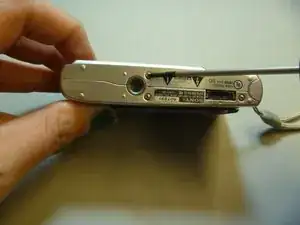

    • Use screwdriver to remove screws.

  5. HHHnMrQcrw3HLVSw

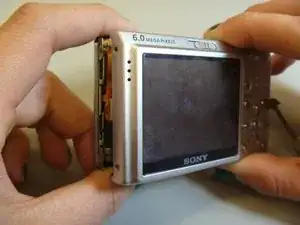

    • Gently pull the front cover off of the main camera.

    • All of the inner parts of the camera are attached to the back screen.

  6. tKTQKXoFTQaCbrrZ

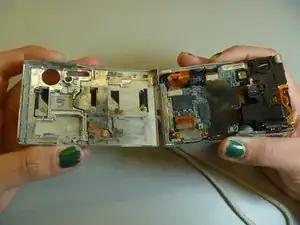

    • The front cover is now removed from the camera and the internal hardware is now exposed.

  7. MxxaYSaP6pgR6sJH

    • This is the CCD module.

  8. CLimOvFmExu4vSFu

    • Use plastic opening tool pop open the two ribbons attaching to the CCD module.

    • These are the two ribbons.

  9. jmphpQuRBH2WFtYv

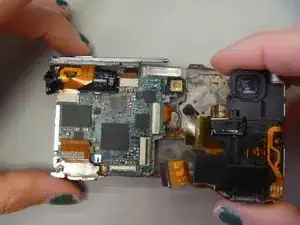

    • Remove CCD module.

    • You may have to tug on the ribbons to remove the CCD module.

  10. KLZICEjRVXCFjXeb

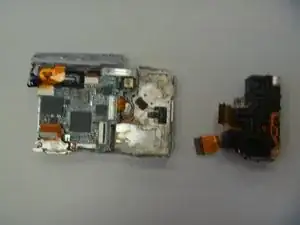

    • The CCD module is now removed from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
