Sony Cyber-shot DSC-T9 Front Sliding Lens Cover Replacement

Geschrieben von: Stephannie Allen
  • Kommentare: 0
Sony Cyber-shot DSC-T9 Front Sliding Lens Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

The sliding lens cover is on the front of the camera, and moves vertically to hide or expose the lens and flash. It may need to be replaced if it becomes stuck.

  1. OPlkYCl2krD4i62a
    OPlkYCl2krD4i62a
    DEcgngIMnvjrWmNc
    tjbljSTTy2oMGUpD

    • Remove screws from outside of camera. There are 6 screws total.

    • 3 screws on underside.

    • 1 screw on right side, near battery cover.

    • 2 screws on left side.

  2. jCx3NvAAmNgOI1LN

    • Use screwdriver to remove screws.

  3. HHHnMrQcrw3HLVSw

    • Gently pull the front cover off of the main camera.

    • All of the inner parts of the camera are attached to the back screen.

  4. tKTQKXoFTQaCbrrZ

    • The front cover is now removed from the camera and the internal hardware is now exposed.

  5. dZjFMhJYwCpOPiKK

    • The front sliding lens cover.

  6. YYgQXKwIRbkkHlCT
    YYgQXKwIRbkkHlCT
    jLuKjZSKpWFshBi1

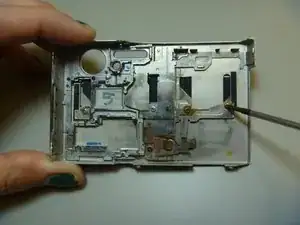

    • Remove four screws using Phillips located on the inside of the front cover.

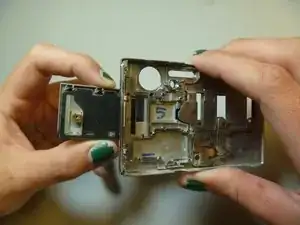

  7. 6TUR612hRyDBRWKO
    6TUR612hRyDBRWKO
    hZHDKJ2UF6fZZoqa

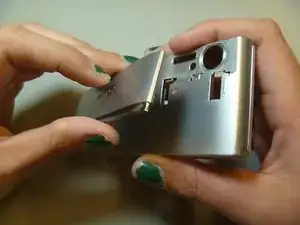

    • Remove front sliding lens cover.

  8. TLctUrAvyhfEDeew
    TLctUrAvyhfEDeew
    R3McND2GERfdZUVJ

    • The front sliding lens cover is now removed and may be repair or replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
