Sony Cyber-shot DSC-W150 Back Casing Replacement

Geschrieben von: iRobot
  • Kommentare: 1
Sony Cyber-shot DSC-W150 Back Casing Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This repair guide will instruct you to disassemble the Sony Cyber-shot DSC W150 to replace a scratched or broken back casing. A screwdriver will remove a total of 8 screws to remove the back casing successfully. Once the screws are removed, you can use your hands to pull apart the back casing.

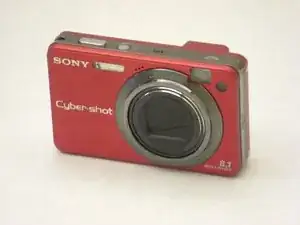

  1. oZ2kCBDPoBoX6E1G

    • The screws from the camera are extremely small, so it is a good idea to have a small container to hold all the screws as you remove them.

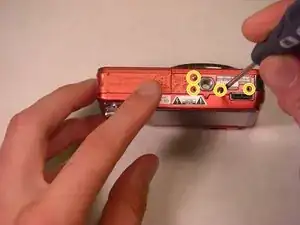

  2. eVBpEvhsibVfcPYP

    • Take your screwdriver and remove the four silver bottom screws of the camera.

    • The picture shows the lens facing away from you and the LCD facing you.

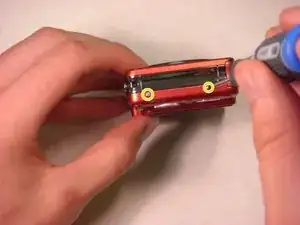

  3. cJBinqZBdaWrcmDX

    • On the right side of the camera, remove the two silver screws using the screwdriver.

    • The picture shows the lens facing away from you and the LCD screen facing you.

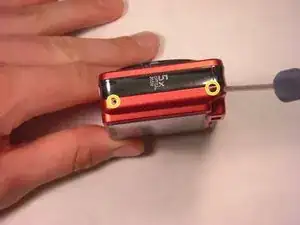

  4. ZSrklFeWWSxEXFnk

    • On the left side of the camera, remove the two silver screws using the screwdriver.

    • The picture shows the lens facing away from you and the LCD screen facing you.

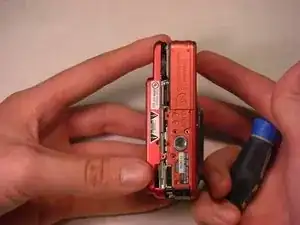

  5. 5BtHYgj3YBtmBF15

    • Gently detach the back cover by holding onto both sides of the camera and pulling them apart.

    Steps 5 and 6 could be combined.

    Rachelle Russell -

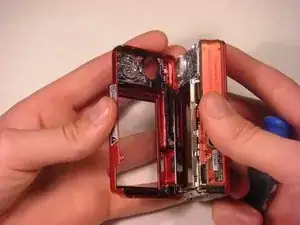

  6. I466pMPW3DxCSSYE

    • After detaching the back cover, carefully pull it off.

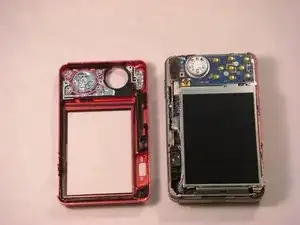

  7. i6QZ3QqVpyZO5bNf

    • The back cover should now be separated from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
