Sony Cyber-shot DSC-W50 Front Case Replacement

Geschrieben von: Nicole Large
  • Kommentare: 0
Sony Cyber-shot DSC-W50 Front Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. 1uaVX4mwYfgvuHjq
    1uaVX4mwYfgvuHjq
    YFSDmKuU4lsthWxm
    wWTQpPBHsrWRgQG2

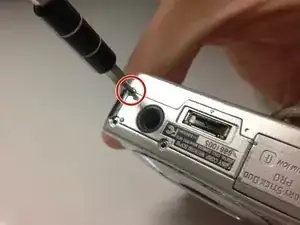

    • Remove the rightmost screw on the bottom of the camera with the screwdriver.

    • Remove the bottom left screw with the screwdriver.

    • Remove the top left screw with the screwdriver.

  2. KsJdpQraCA4JU34w

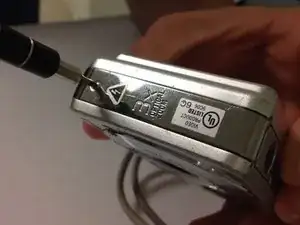

    • Flip the camera over to expose its right side.

    • Remove the screw with the screwdriver.

  3. M3EIMNEdPMHGO25n
    M3EIMNEdPMHGO25n
    rtDXaRUx5YQjVAXY

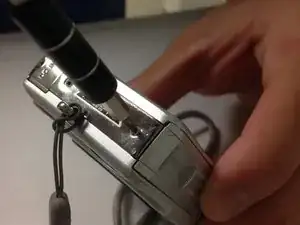

    • Flip the camera to expose the left side with the wrist strap.

    • Remove the top screw with the screwdriver.

    • Remove the bottom screw with the screwdriver.

  4. mVabDRs1P2HlgKZC

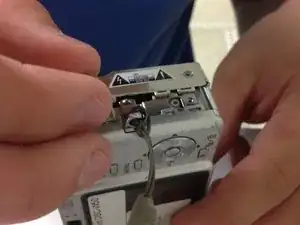

    • Lift the side panel of the camera up to release the front case.

  5. bDUIdj6oXH6DRMt2

    • Lift the front case up gently to remove it completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
