Sony Cyber-shot DSC-W690 Navigation Buttons Circuit board Replacement

Geschrieben von: Will Norris
  • Kommentare: 0
Sony Cyber-shot DSC-W690 Navigation Buttons Circuit board Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 - 45 Minuten

Einleitung

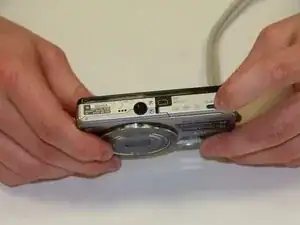

  1. GJwnXL3WgCuurx5l

    • Open the battery door.

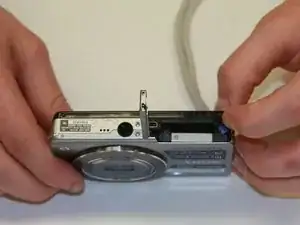

  2. 6MNSnPeATaLySrAk

    • Open the battery lock to release the battery.

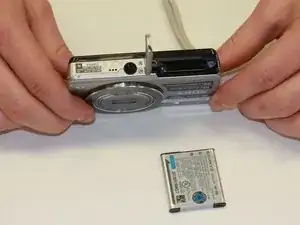

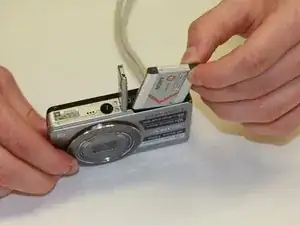

  3. k2ijrmO5IeVpOJHK
    k2ijrmO5IeVpOJHK
    3wSgasmyFjyX6rkO

    • Remove the battery.

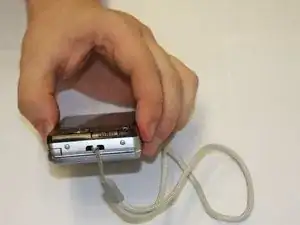

  4. HPCEkP1BrNLBe1wT

    • Remove the wrist strap

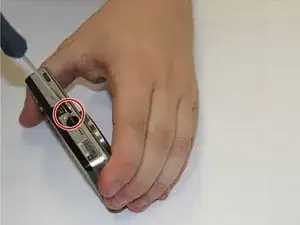

  5. J1CkWLbNatZ5JIsC
    J1CkWLbNatZ5JIsC
    sLKHIgh3VVICH5La

    • Remove all 6 3mm outside screws

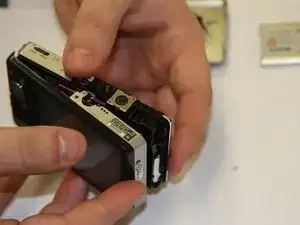

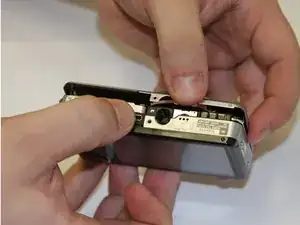

  6. pjOhHNrbkQTMmtfF
    pjOhHNrbkQTMmtfF
    PNOMapTDhnFURavb

    • Carefully pry the case apart.

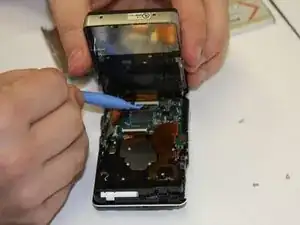

  7. lHoiZlL5GdphNQMJ

    • Use spudger to delicately open wire contact.

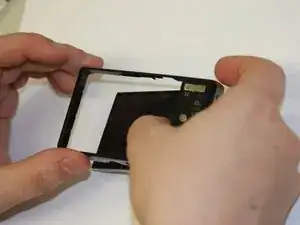

  8. UGdLgSxhLA4wfIMB

    • Gently push LCD screen out of back case.

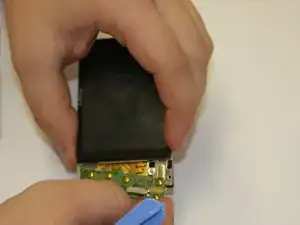

  9. Goo3SBQHjURikbXI

    • Remove and replace the button circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
