Sony Cyber-shot DSC-WX220 Flash Replacement

Geschrieben von: Kate Glazer
  • Kommentare: 0
Sony Cyber-shot DSC-WX220 Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

If the flash assembly is broken or not working properly, follow this guide to replace it.

  1. MSD1FfiUuULWGPE4

    • Slide the gray switch from lock to open position.

  2. Fkl4VbJljIiOYBVf
    Fkl4VbJljIiOYBVf
    fiTHTSEcNtMVJDxC

    • Pull down on the blue tab to release the battery.

  3. klUlOMPDXNcSDsfG
    klUlOMPDXNcSDsfG
    igQCDvj2HxpjqUbL
    vGsbYOaY3EBT3RLt

    • Use a PH00 screwdriver to remove the five 3.5 mm screws.

    • Use a PH00 screwdriver to remove the two 2.5 mm screws.

  4. 33nZjriXMxouoBiP
    33nZjriXMxouoBiP
    iBNJOmOh1DSOWNHN

    • Pry apart the case gently using a plastic opening tool.

  5. CdoEKY4GuEl3HBCm

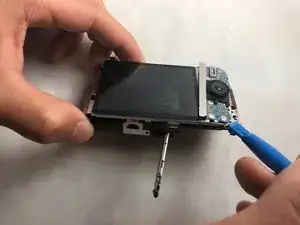

    • Pry back the panel to the right of the screen using a plastic opening tool.

  6. y3ZDjiMhdfSaPUir

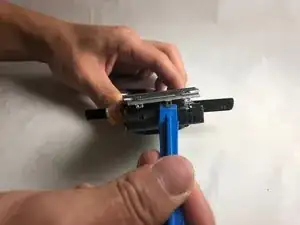

    • Working on the left side of the screen, pry the metal panel off from the motherboard housing using a plastic opening tool.

  7. p5nvlgLggKfxO4Ij

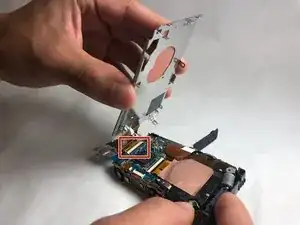

    • Pull out the ZIF cable from the motherboard.

    • When removing the ZF cable, pull it straight out to avoid damaging the cable.

  8. mvHLwYu6hJK3qXsZ

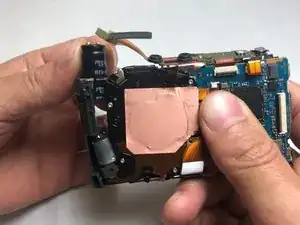

    • Pull the capacitor out of the shell.

    • Be careful not to shock yourself on the capacitor(metal components on the top)

  9. pWyUoCL6nJGwqDRw

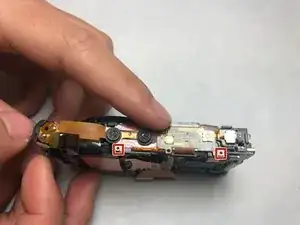

    • Unpin the flash assembly.

  10. X2dmMUhbKjt1wnt1

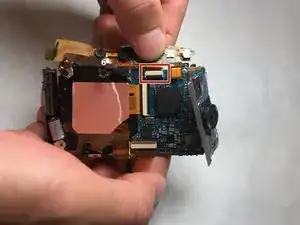

    • Lift flash component toward you and gently pull the ZIF cable up and away from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
