Sony Cyber-shot DSC-WX220 Screen Replacement

Geschrieben von: Kate Glazer
  • Kommentare: 0
Sony Cyber-shot DSC-WX220 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

This guide shows how to replace the camera's screen if damaged.

  1. MSD1FfiUuULWGPE4

    • Slide the gray switch from lock to open position.

  2. Fkl4VbJljIiOYBVf
    Fkl4VbJljIiOYBVf
    fiTHTSEcNtMVJDxC

    • Pull down on the blue tab to release the battery.

  3. klUlOMPDXNcSDsfG
    klUlOMPDXNcSDsfG
    igQCDvj2HxpjqUbL
    vGsbYOaY3EBT3RLt

    • Use a PH00 screwdriver to remove the five 3.5 mm screws.

    • Use a PH00 screwdriver to remove the two 2.5 mm screws.

  4. 33nZjriXMxouoBiP
    33nZjriXMxouoBiP
    iBNJOmOh1DSOWNHN

    • Pry apart the case gently using a plastic opening tool.

  5. GPKKmpjxetDwwjLY

    • Pry back the panel to the right of the screen using a plastic opening tool.

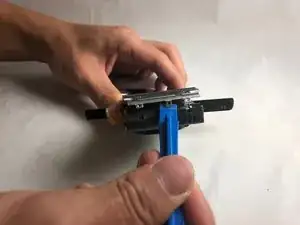

  6. uogJKORC4BrkRWXE

    • Working on the left side of the screen, pry the metal panel off from the motherboard housing using a plastic opening tool.

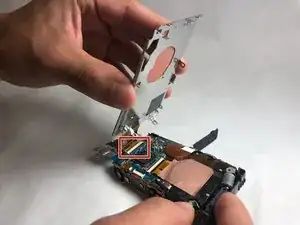

  7. InbVL2AXGi61RnZO

    • Pull out the ZIF cable from the motherboard.

    • When removing the ZIF cable, pull it straight out to avoid damaging the cable.

  8. hJNGe2kDoIFUuain

    • Lift the LCD screen from it's metal housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
