Sony Cyber-shot DSC-WX350 LCD Screen Replacement

Geschrieben von: Jit Banerjee

Kommentare: 9

Sony Cyber-shot DSC-WX350 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

This guide will help you to successfully replace the LCD screen from your Sony Cyber-shot DSC-WX350 camera. Handle circuits with care.

Werkzeuge

Schritt 1

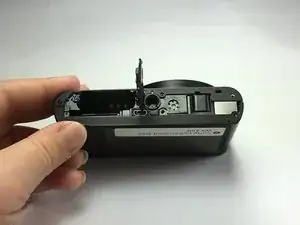

Begin with the battery cover closed.

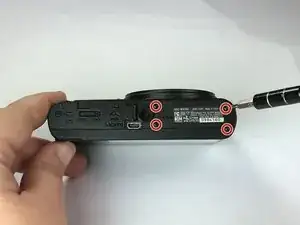

Remove 6 black Phillips 4 mm screws using the Ph000 head screwdriver tip from the bottom covering.

Schritt 2

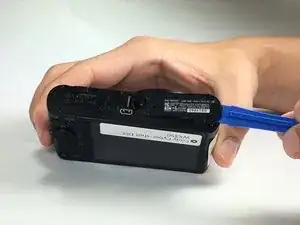

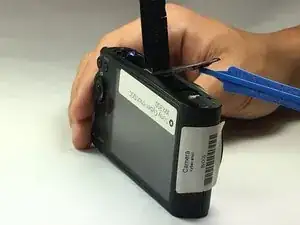

Using a plastic opening tool, carefully insert it between the camera cover and the bottom cover. Pull it apart.
Using a plastic tool will prevent the device from being permanently damaged. Avoid using metal tools for this device.
The bottom covering is attached by a hinge. Removing this part will also require a small amount of force to separate.

If you do this you’ll break the plastic piece at the bottom right so unsted lift it just a bit 2mm and slide it like in step 4

vinzducros - 22/03/21

Schritt 3

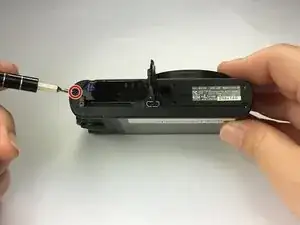

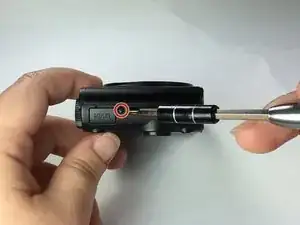

Remove 1 black Phillps 4 mm screw using a Ph000 screwdriver tip from under battery cover.

Schritt 4

Once the part is separated, move it toward the battery slot.
Push the piece towards the camera to separate it from the hinge.
Do not pull up otherwise you will break the piece off.

Schritt 5

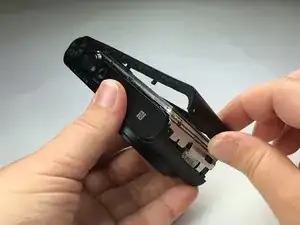

Separate the back of the camera frame from the body by taking apart the bottom and the sides of the camera.
This will require a little force. You will feel tension and hear clicking noises. That is normal.

there is 2 more screws on each sides of the camera to remove before doing this

vinzducros - 22/03/21

Schritt 6

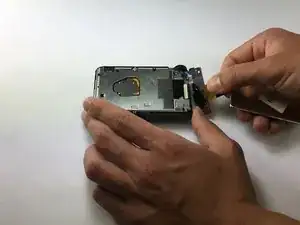

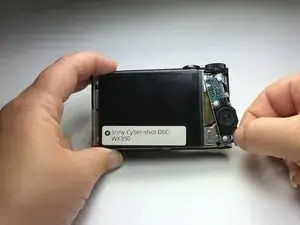

To remove the control wheel from its position, grab the bottom of the part and pivot to the side and away from the camera.
After the part is fully away from the camera, move the part downward and out. It should now be fully extended and able to bend at the band that is attached to the body.
DO NOT remove the control wheel panel from the camera. Simply move to the side in order to access the orange band holding the LCD screen to the motherboard.

Schritt 7

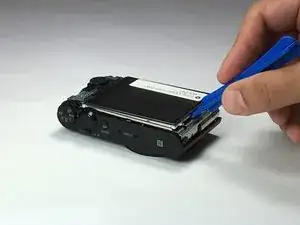

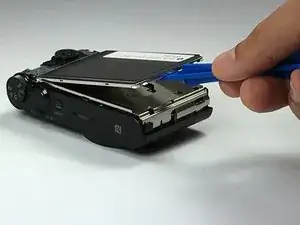

With a plastic opening tool, lift the LCD screen from the camera body.

Depends on the replacement screen you did buy, you’ll have to remove the aluminuim case which is wrapping your lcd sreen, to place it on the new on (i recommande to use a guitar mediator to do it)

vinzducros - 22/03/21

Schritt 8

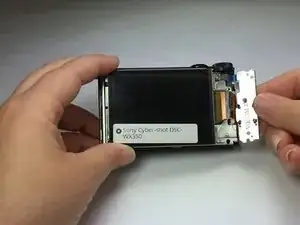

Set the LCD screen to the side

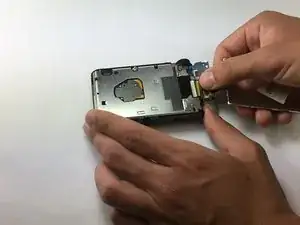

Grab the orange band holding the LCD screen and gently pull to detach from the camera body.
Do not pull the white strip on top of the orange band. This is part of the circuit inside the camera and detaching this piece could permanently damage your camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
