Sony Cybershot DSC-T5 Button Replacement

Geschrieben von: Jason Vaccaro
  • Kommentare: 0
Sony Cybershot DSC-T5 Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

  1. J5sh1ZGQpfTRwoLX
    J5sh1ZGQpfTRwoLX
    Vh6a5MUIpaDeFK2y
    bUJIINyIVquDtJjI

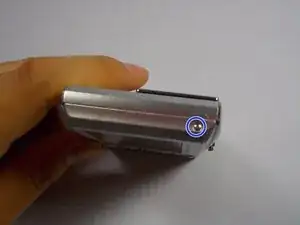

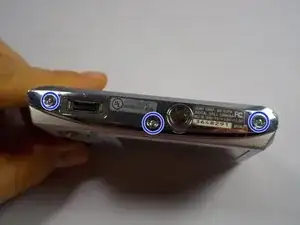

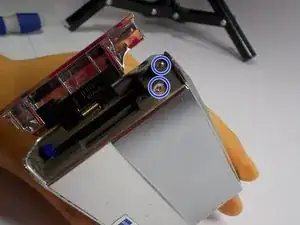

    • Remove all 6 exterior screws from the casing.

  2. aaGKJCOnsVgJLHuv
    aaGKJCOnsVgJLHuv
    WrEviAuFAlOLuRdC

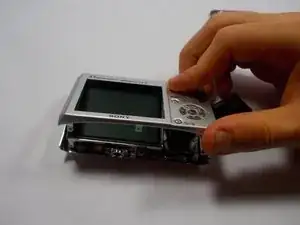

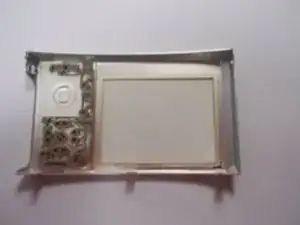

    • Remove the front casing by carefully pulling it off from the camera.

  3. Q1yIJyqrl5wSllCN
    Q1yIJyqrl5wSllCN
    l4qLAIV2gsUfwHvH
    lLicciNTLbtJqCcF

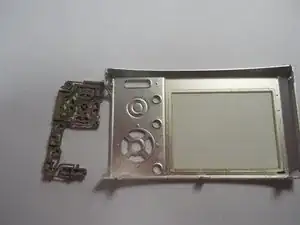

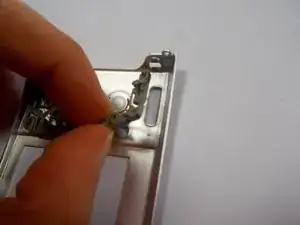

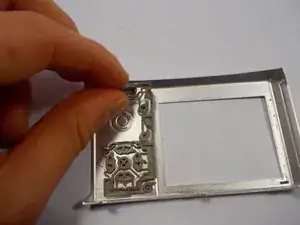

    • Start at one end of the button layout and carefully pull the buttons off the casing.

    • Note that there is some adhesive on the buttons.ne.

    • Insert a new button layout and re-assemble device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
