Sony Cybershot DSC-T5 Sliding Lens Cover Replacement

Geschrieben von: John Aust
  • Kommentare: 0
Sony Cybershot DSC-T5 Sliding Lens Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. hfeYeHJ2JW5pFEoc
    hfeYeHJ2JW5pFEoc
    GIBd3mp1qQFLCrfe
    pfclne2cbcU4ZAIh

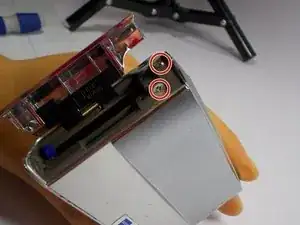

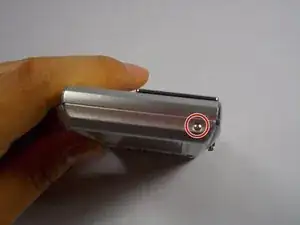

    • Remove all screws from the camera.

  2. aWk4Uo4po53n2fdm
    aWk4Uo4po53n2fdm
    Wdv413YJxy2DGIfR
    MrSnwg4HGS2OXode

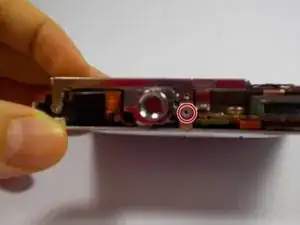

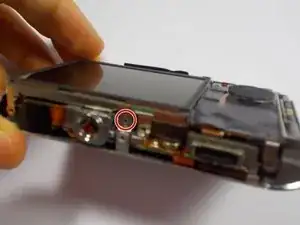

    • Remove the screw inside the red circles.

    • Remove the front lens cover.

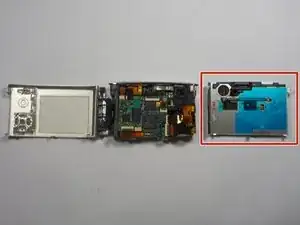

    • From left to right: control panel, camera, front lens cover. The front lens cover is what we will continue to work with.

  3. jjl5sRmMjZQNF4C6
    jjl5sRmMjZQNF4C6
    MEqAKGMfcH4n2sDh

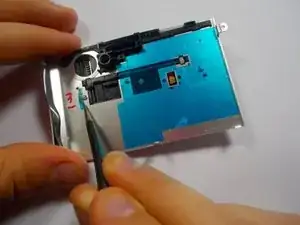

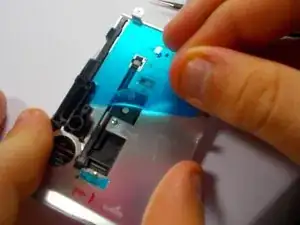

    • Remove the blue tape. Tweezers or something similar will be required.

  4. RFFaxgFiN2cOUs1b
    RFFaxgFiN2cOUs1b
    tq21FlEJeXsoy4lt
    gaqwDIy43a3wf61X

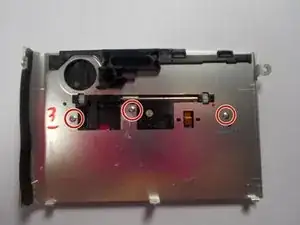

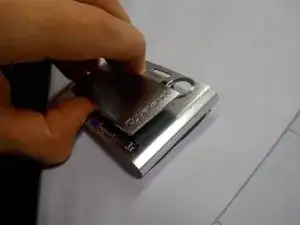

    • Remove the screws.

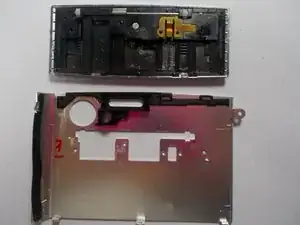

    • Remove lens cover from the front panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
