Einleitung

The motherboard paramount for the proper function of the camera, basically acting like a "brain." This guide will serve as check for electronic connections, and a full removal procedure of this critical component.

  1. SWdRkqtL66RXM52L
    • Remove all the 4.3mm screws on the bottom using a J000 Phillips screwdriver. There should be seven screws (4 silver, 2 black).

  2. KwuIyYxURO2kCeMF
    • Remove the 5mm #0 Phillips screws on the underside of the LCD tuck-a-way.

  3. QAiFMssDxrP645Yg
    • Remove the 2mm #0 Phillips screw behind the battery.

  4. FGjUE33wYFCCxk1A
    • Open the dvd cover and remove the 3 4.3mm phillips screws. Including ones in the corners that may be hidden.

  5. pbqZRPkqh4mQsyFe
    pbqZRPkqh4mQsyFe
    lddJHt1yAPNEWlUr
    • Once all the screws are removed you can safely pry open the camera case using a spudger.

  6. YCcGXZxxWnCoAvpI
    YCcGXZxxWnCoAvpI
    qYFQACQ4L3lHRJlm
    • Remove all ribbon connectors from the motherboard using tweezers. Simply grab each ribbon cable and pull straight out of the connector.

    • Be careful not to bend the ribbon cables.

    • There is a hidden wire on the bottom of the board that should also be removed.

  7. igyQnTYkhuhtED2D
    igyQnTYkhuhtED2D
    Tn1WPXRxluTyrp3D
    gQaOUSwjG1XnBxWO

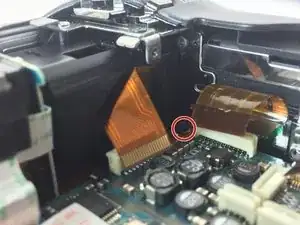

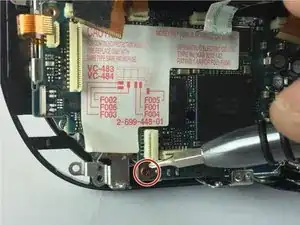

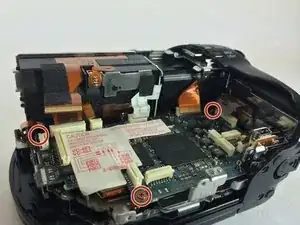

    • Remove 3 brown copper screws. Each copper screw has a #0 Phillips head and is 2.8mm in length.

  8. iHWY1Uo641dNVhUE
    • Lift the motherboard up from the outside edges to remove.

Abschluss

In order to reassemble your device, follow these instructions in reverse order.
