Einleitung

  1. 5Y2QBubgjuqieDOS
    5Y2QBubgjuqieDOS
    qTpVcVUWgSBPMY3X
    NdoNDZiXf6Ca3AMy
    • Remove battery by sliding the tab to open the cover

  2. Z3KEOwyuBVtSEtx6
    Z3KEOwyuBVtSEtx6
    vMvnSSMe5R5kUY3M
    MlnwUdLYcgHPyeGb
    • Using the screwdriver, remove all screws (black 2.5mm) from outermost layer of the assembly.

    • All screws in the camera can be removed with the PH 0 driver head.

    Split this step up into multiple steps based on where screws are being removed from or specify how many screws are removed in this step

    Alberto Rodriguez -

  3. GG2aQQtS1CsNUUhJ
    GG2aQQtS1CsNUUhJ
    IwUu5k2QkIRbVrCy
    3yZCDQOcYkUHrBLs
    • Also using the screwdriver, remove screws (black 1mm) underneath articulated LCD screen.

    • Remove the marked 2.5 mm screws with the screwdriver

    2 different types of screws are removed in this step: specify the types

    Alberto Rodriguez -

    It is not necessary to remove the hinge screws. It is much easier to remove the back panel with the LCD still attached and not flopping about everywhere.

    cheez -

  4. Xr6yoceDwVfYLRHB
    Xr6yoceDwVfYLRHB
    GniLMdDCx3nG4ohr
    • Using the plastic opening tools, carefully pry off the bottom plate.

    • Do not pull too hard as you may break the plastic casing.

  5. JU6eJ5bmNvjDbREs
    JU6eJ5bmNvjDbREs
    VWIhdEEYGZMxWIxe
    16QlMwHqRJSrm6xt
    • Using the same plastic opening tools, separate the screen and back assembly from the front portion of the camera

    • Once the back assembly is slightly detached, pull the media covers for the HDMI and Multimedia ports

  6. XEbRkOZPBxegUcI5
    XEbRkOZPBxegUcI5
    YxBiZDRVQfEZAWue
    • Remove the back cover

  7. R4bXWIwmhBJgMINV
    R4bXWIwmhBJgMINV
    ngWyBMQRcC14gTJE
    FGnWSQGTtR2LEmx6
    • Move side panel to get access to screws

    • Remove two screws (black 2.5mm) with PH #0 screwdriver

    In the second picture of the side, it is not the upper screw by the USB that needs removing, but the lower one by the SD/battery door

    James Robinson -

  8. 6UMcTZqlJBVbAXAx
    6UMcTZqlJBVbAXAx
    jykx1qJPqRsSoEUt
    • Remove back panel assembly while still keeping ribbon cable attached

    • Be very gentle and care not to tear the gold ribbon cable. This will be a common theme throughout these replacement guides.

  9. HmdEQsABVKCQx5HE
    HmdEQsABVKCQx5HE
    lTOnRX1jBGnwPAM3
    • Carefully unplug ribbon connector to fully detach LCD screen assembly from camera

    It is worth saying that the grey line on the left-hand edge of the flex connector flips up to release the flex.

    And Rew -

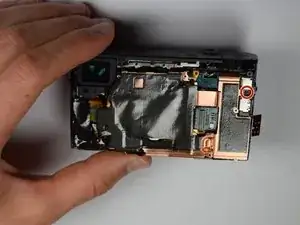

  10. wUQNGqkoZwAt1JXp
    wUQNGqkoZwAt1JXp
    lPY6RdE2TIqcyyM2

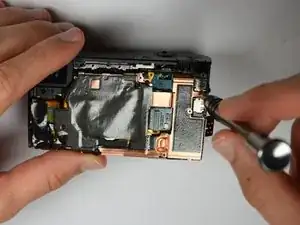

    • Using the Philips Screwdriver, remove the screw (black 3mm) located on the copper casing.

  11. NFOEskWA1qYCSt4R
    NFOEskWA1qYCSt4R
    BCSgIXDPi5J6xYdn
    PSLJqENZqRAeBwiW

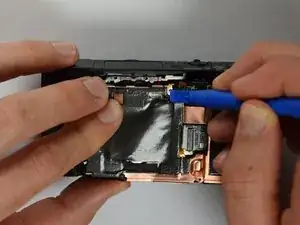

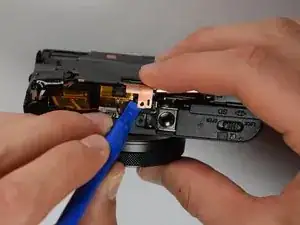

    • Using the plastic opening tools, carefully pry off the copper casing at the two pictured points.

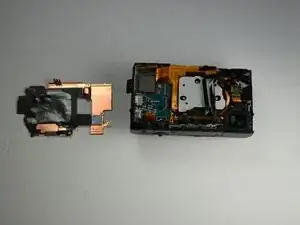

    • Remove casing.

  12. tf3fbZDCrZtGaZXL
    tf3fbZDCrZtGaZXL
    myq6LdcRrsnWwWNZ
    CbO4pkSZs1xINciN

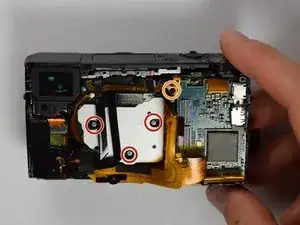

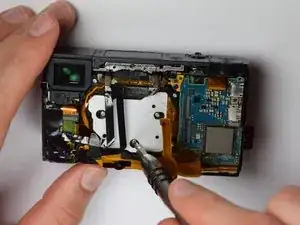

    • Using the Philips screwdriver, remove the three (silver 3mm) screws

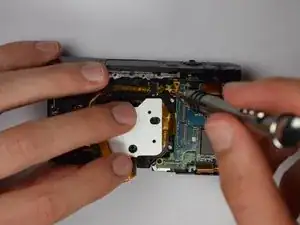

    • Remove the screw (silver 2mm) from the upper right hand corner

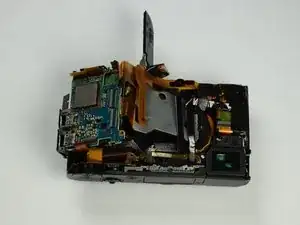

  13. 4vEliakfqNUTDFyM
    4vEliakfqNUTDFyM
    JmpOGYWLX1bAhcjt
    NtOBvoJSHI3JMEKU

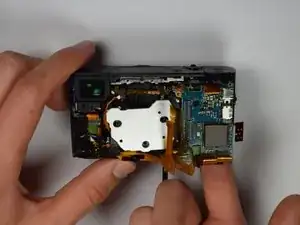

    • Place your finger into the battery port and push up on the SD card holder to push it out of its socket.

    • Give it a little wiggle and you should feel the SD card holder come out.

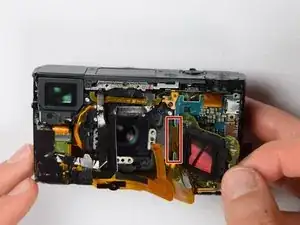

  14. hSZu3EY6BTHMrdpd
    • Now you can remove the marked gold ribbon cable from the SD card holder.

    • Utilize extreme caution while removing because the ribbon cables are extremely fragile and important to the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
