Sony DSC-RX100MA Screen Replacement

Geschrieben von: KC Egger

Kommentare: 9

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

If your camera's screen isn't working properly, you may need to replace it. Follow this guide to do so!

Werkzeuge

Schritt 1

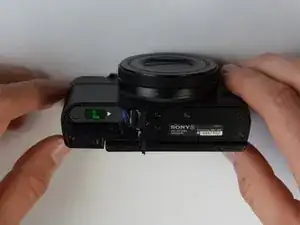

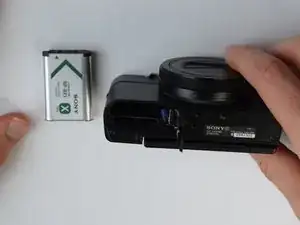

Remove battery by sliding the tab to open the cover

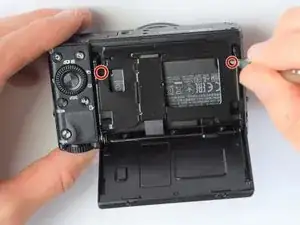

Schritt 2

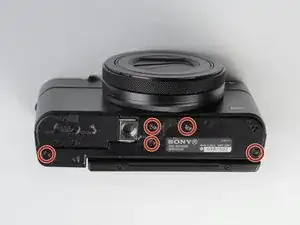

Using the screwdriver, remove all screws (black 2.5mm) from outermost layer of the assembly.
All screws in the camera can be removed with the PH 0 driver head.

Split this step up into multiple steps based on where screws are being removed from or specify how many screws are removed in this step

Alberto Rodriguez - 09/03/17

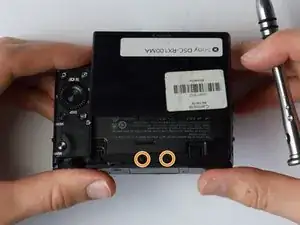

Schritt 3

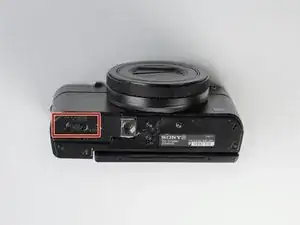

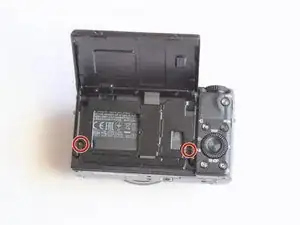

Also using the screwdriver, remove screws (black 1mm) underneath articulated LCD screen.
Remove the marked 2.5 mm screws with the screwdriver

2 different types of screws are removed in this step: specify the types

Alberto Rodriguez - 09/03/17

It is not necessary to remove the hinge screws. It is much easier to remove the back panel with the LCD still attached and not flopping about everywhere.

cheez - 28/09/17

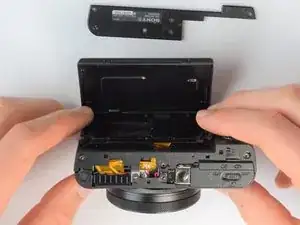

Schritt 4

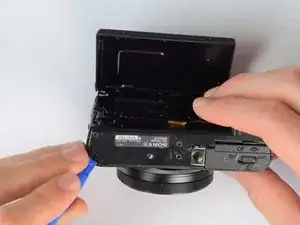

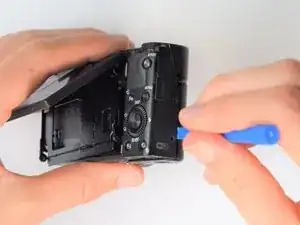

Using the plastic opening tools, carefully pry off the bottom plate.
Do not pull too hard as you may break the plastic casing.

Schritt 5

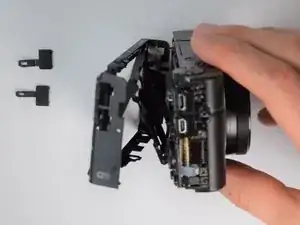

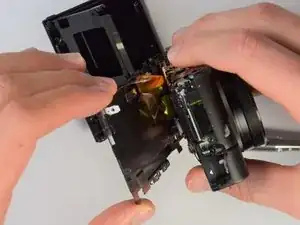

Using the same plastic opening tools, separate the screen and back assembly from the front portion of the camera
Once the back assembly is slightly detached, pull the media covers for the HDMI and Multimedia ports

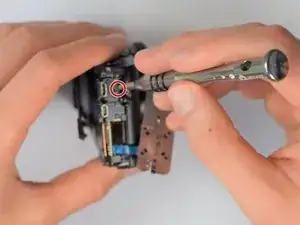

Schritt 7

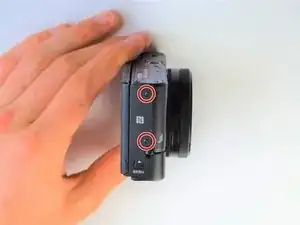

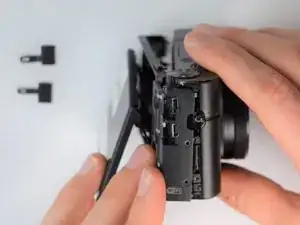

Move side panel to get access to screws

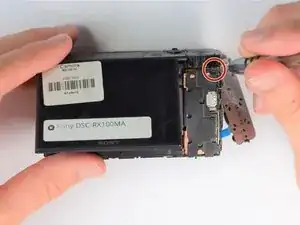

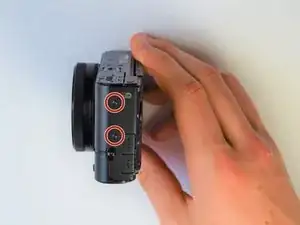

Remove two screws (black 2.5mm) with PH #0 screwdriver

In the second picture of the side, it is not the upper screw by the USB that needs removing, but the lower one by the SD/battery door

James Robinson - 31/03/21

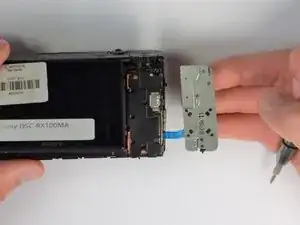

Schritt 8

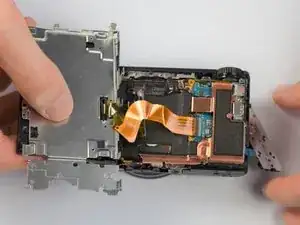

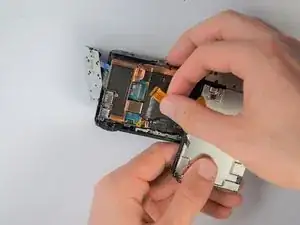

Remove back panel assembly while still keeping ribbon cable attached
Be very gentle and care not to tear the gold ribbon cable. This will be a common theme throughout these replacement guides.

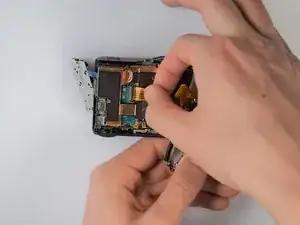

Schritt 9

Carefully unplug ribbon connector to fully detach LCD screen assembly from camera

It is worth saying that the grey line on the left-hand edge of the flex connector flips up to release the flex.

And Rew - 24/06/20

Abschluss

To reassemble your device, follow these instructions in reverse order.
